IBM 6400 Series - Pedestal Model, Mechanism Base

Wire Data308

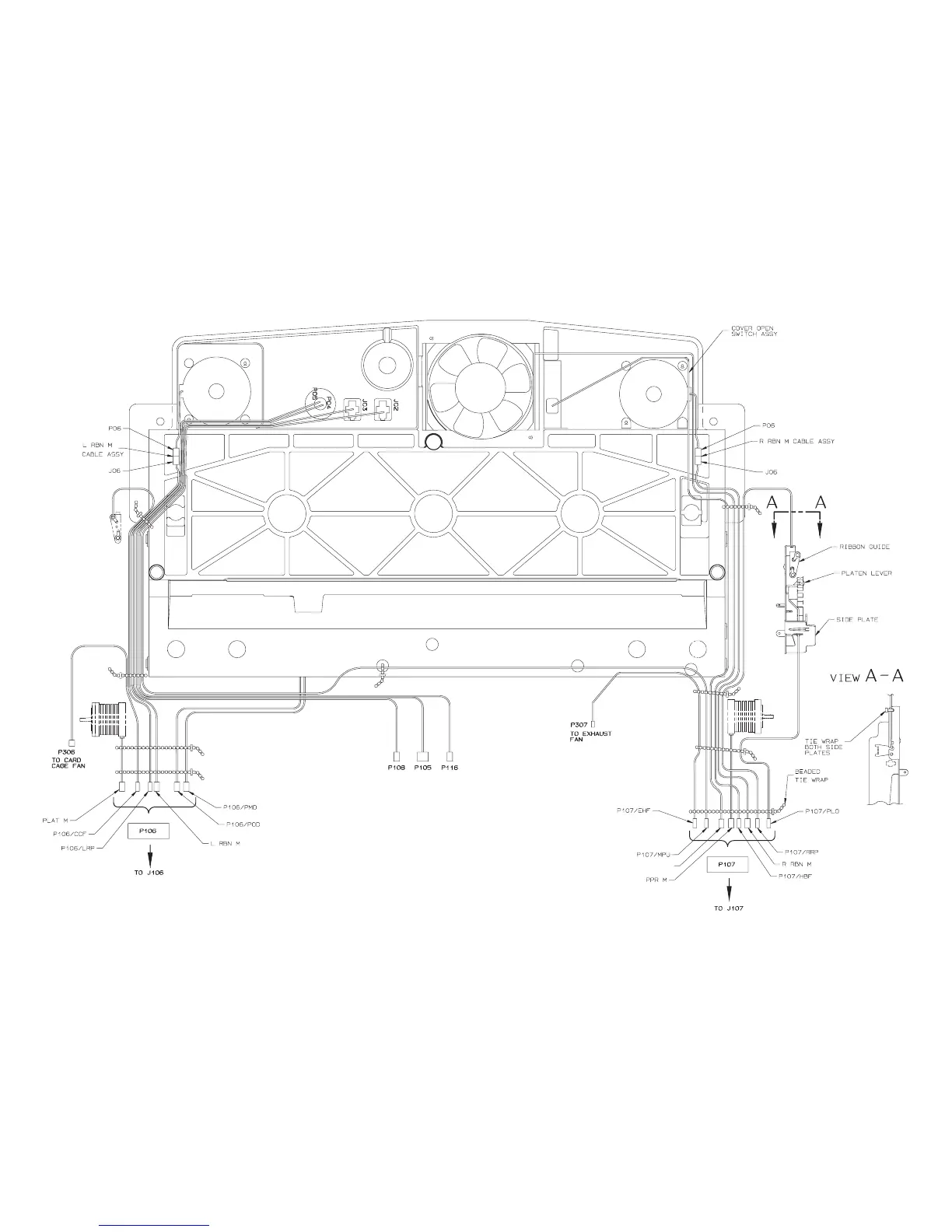

Cable Routing, Mechanism Base,
Pedestal Model
(Looking up from Below)
T o J106
on Controller
T o J107
on Controller
Left Side
Right Side
Front of Printer
of Printer
of Printer
(See page 199 for
connector detail.)
(See page 199 for
connector detail.)
P107/CVO
(Unconnected on
on pedestal models)
