31
Preventive Maintenance
Tractor
Splined
Shaft
Shuttle
Cover
Assembly
Base
Casting
Forms
Thickness
Lever
Ribbon
Guide (2)
NOTE: Cabinet model shown.
Procedure is the same for
pedestal model.

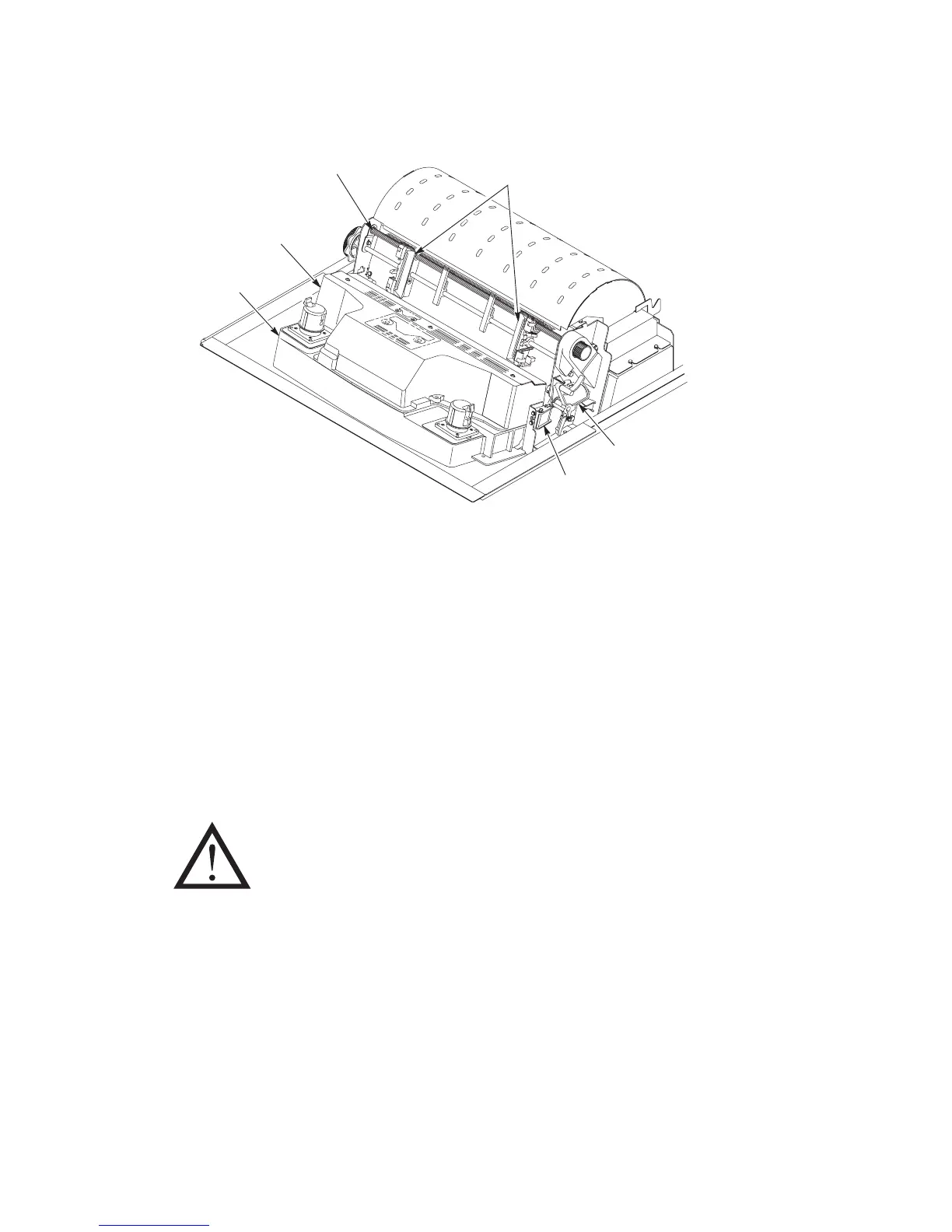

Figure 5. Cleaning Inside the Cabinet or Top Cover
Cleaning the Shuttle Frame Assembly
1. Remove the shuttle cover assembly (page 209).
2. Remove the shuttle frame assembly (page 249).
3. Remove the paper ironer (page 236).
CAUTION:
<2> Over time the upper edge of the paper ironer can become sharp. To
avoid cutting yourself handle the paper ironer on the sides.
4. Wipe the paper ironer with a soft cloth to remove lint, ink, and paper
residue.
5. Install the paper ironer (page 236).
6. Remove the hammer bank / ribbon mask cover assembly (page 206).
To Next Page
