Wire Data306

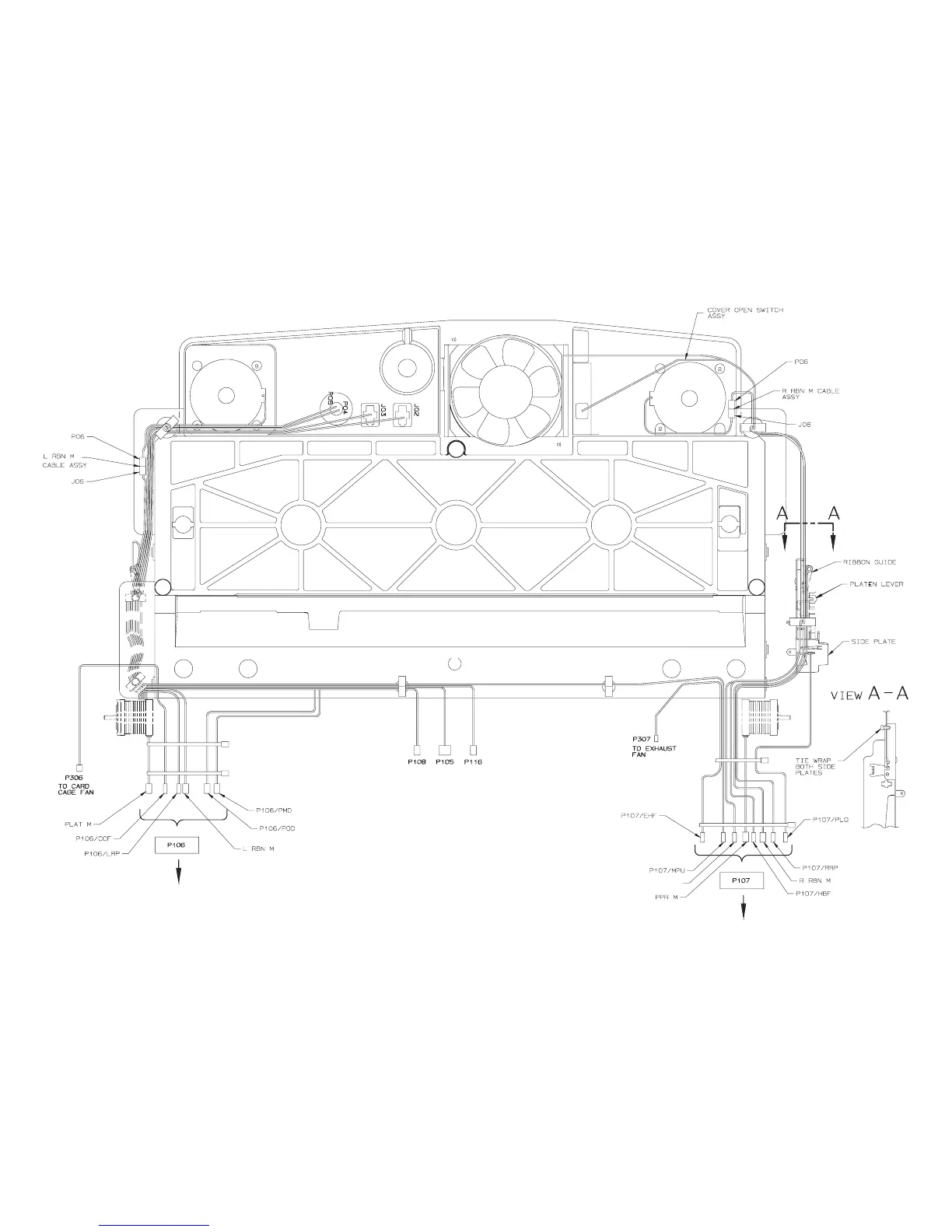

Cable Routing, Mechanism Base
Cabinet Model
(Looking up from below)
T
o J106
on Controller
T
o J107
on Controller
Left Side
Right Side
Front of Printer
of Printer
of Printer
(See
page 199 for
connector detail.)
(See page 199 for
connector detail.)
P107 / CVO
