180
Adjustment Procedures
9. Press Enter. The printer begins printing all Hs, each line preceded by the
phasing index number.
10. Press Return. The display will show
“SER
VICE / PRINTER MECHANISM TESTS”.
11. Press Scroll or Scroll until “SER
VICE / HAMMER PHASE V
ALUE” is
on the display.
12. Press Enter. The top line of the display will show
“HAMMER PHASE V
ALUE” and the bottom line will show the current
phasing index number.
13. Press Enter. The phasing index (followed by an asterisk) will move up to
the top line of the display.

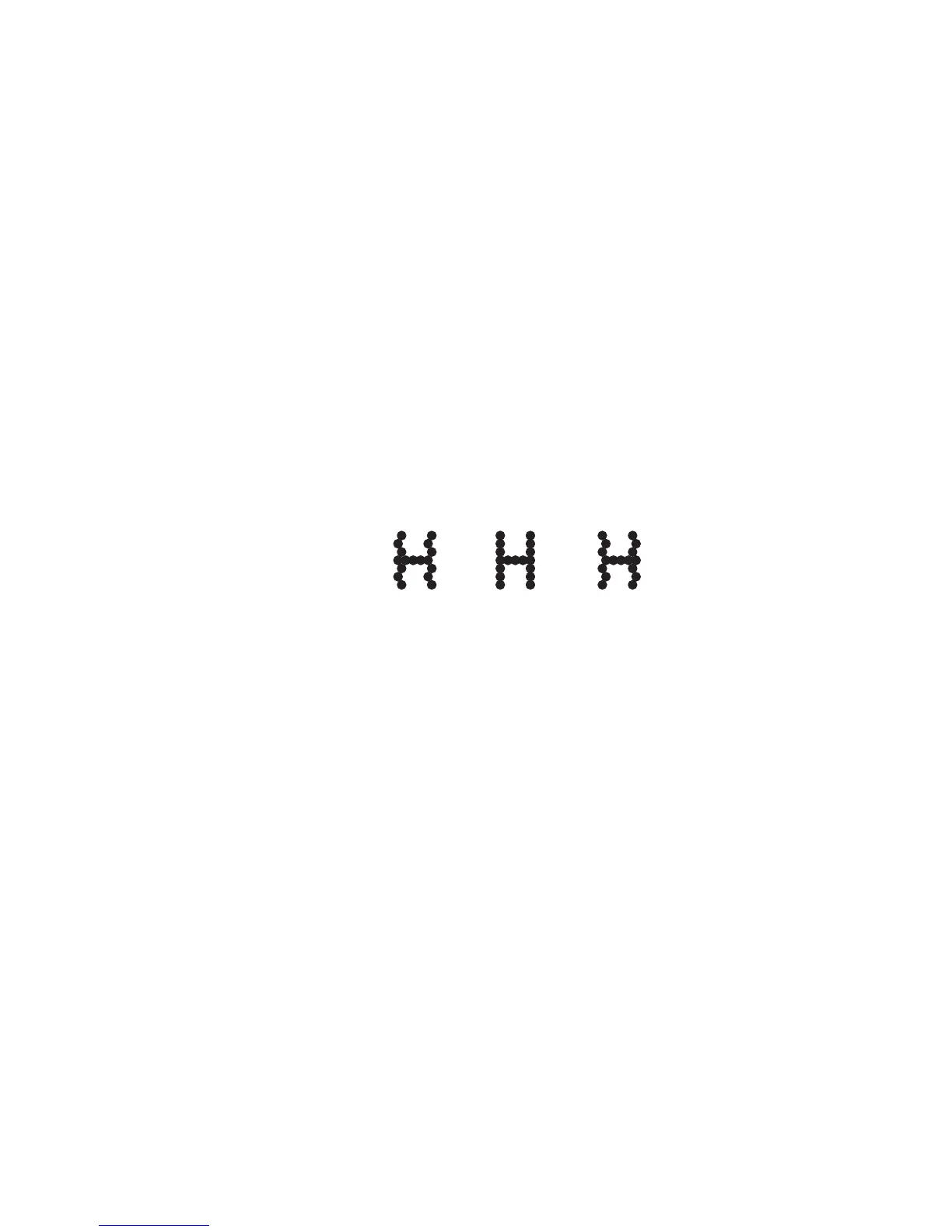

14. Press Scroll or Scroll to increase or decrease the phasing index, then
press Enter to activate the value as it prints. Continue to increase or
decrease the phasing index until the pattern of Hs appears as shown
below:
Needs
Adjustment
Correct
Needs
Adjustment
15. When the print pattern is acceptable, press Stop. Printing stops, and the
printer automatically enters the current phase index value into NVRAM.
The display shows “NOT READY”.
16. Press Scroll + Scroll to lock the Enter key.
17. Close the printer cover. Press Start to put the printer into READY mode.
NOTE: If you changed the phasing value, power down the printer, remove
the shuttle cover, and write the new phase value on the aluminum
shuttle casting.
