Replacement Procedures and Illustrated Parts List
Hammer Spring
Assembly 7
Hammer Spring
Assembly 1
Discard old screws
NOTE: The hammer spring assemblies shown below are for
6400–004
,
04P
,
005
,
05P printers. The number of hammer springs
and mounting screws varies among printer models, but hammer
spring removal is the same.

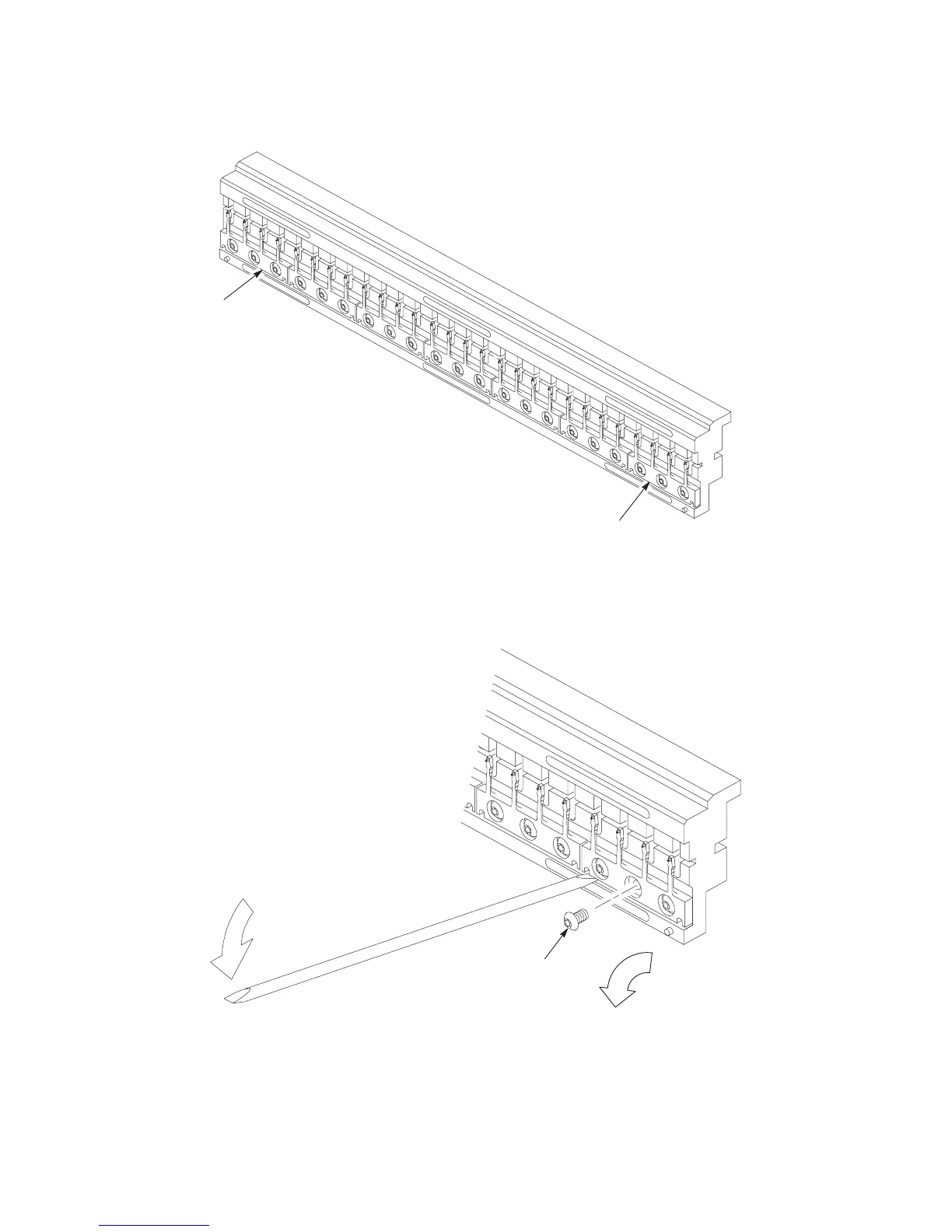

Figure 32. Hammer Spring Assembly, Removal
