Replacement Procedures and Illustrated Parts List
Use new screws from the kit. Torque
screws to 14 inch-pounds (1.58 Nm).
NOTE: The hammer spring assemblies shown above are for
6400–004
,
04P
,
005
,
05P printers. The number of hammer springs
and mounting screws varies among printer models, but installation
procedure and torque values are the same.
New Hammer Spring
Assembly

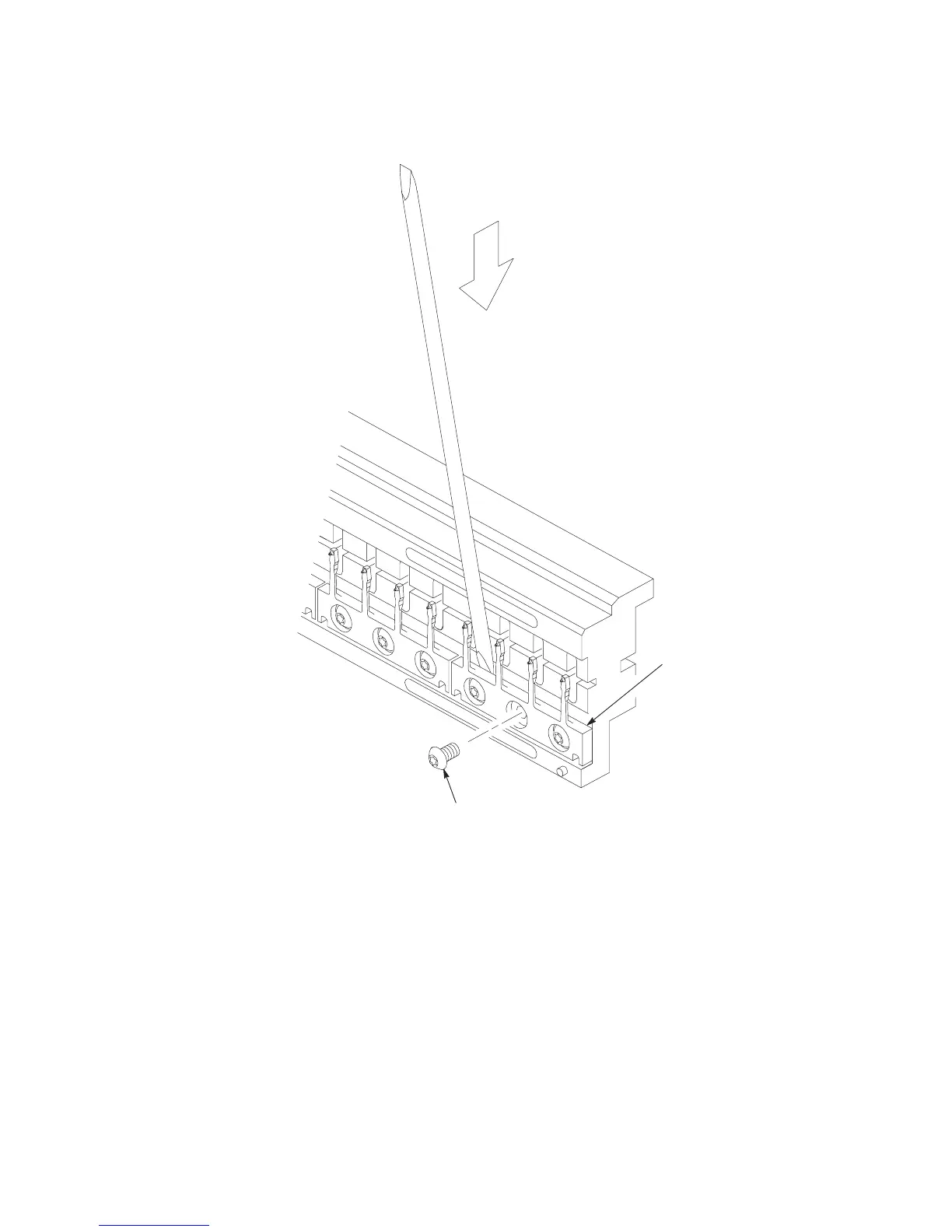

Figure 33. Hammer Spring Assembly, Installation
