IBM 6400 Series Maintenance Manual

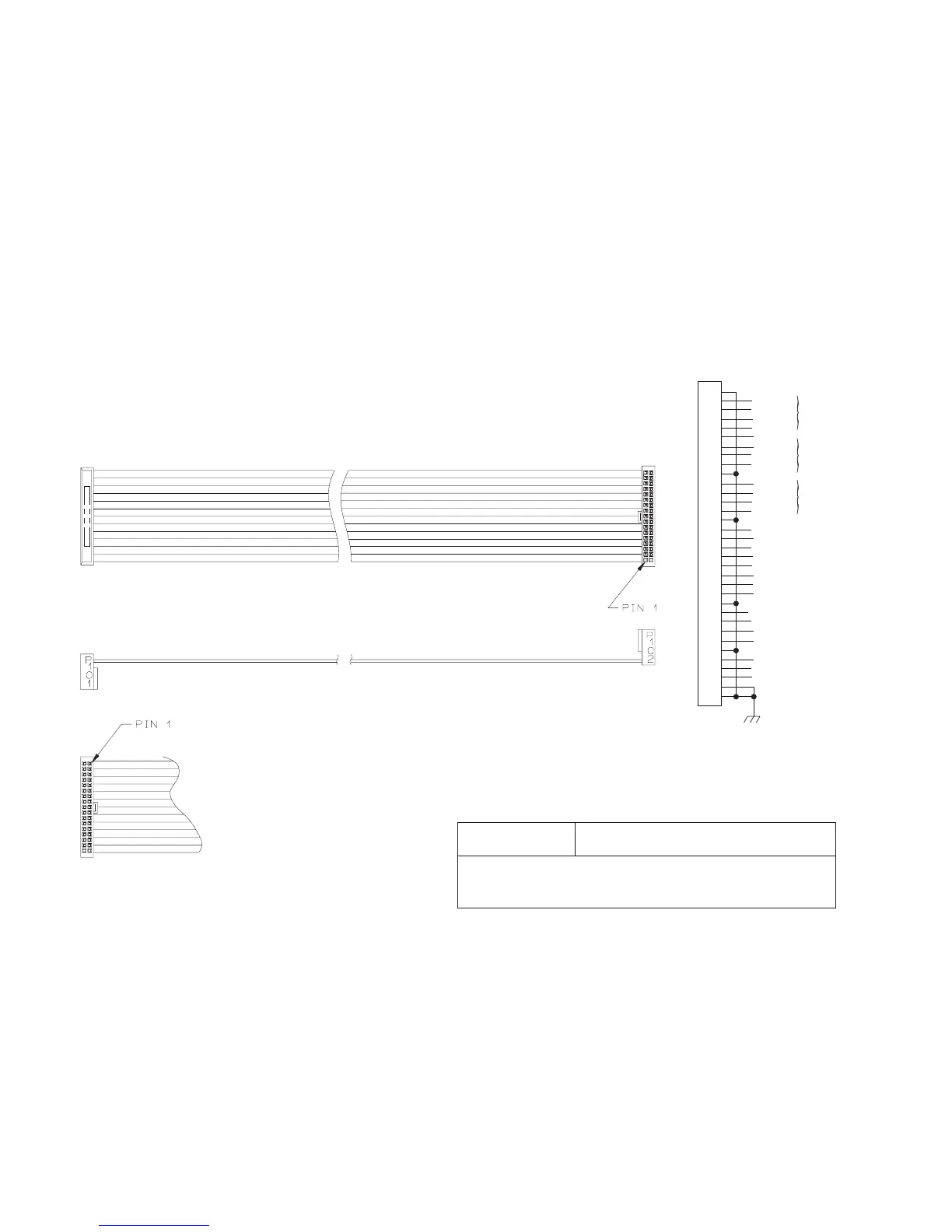

Wire Data324
Cable, Frame, Power Stacker
DescriptionPart No.
24H8973
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
PMD A
M1 A1
M1 A2
M1 B1
M1 B2
M2 A1
M2 A2
M2 B1
M2 B2
LD1 A
LD1 K
DT1 C
DT1 E
LD2 A
LD2 K
DT2 C
DT2 E
PMD K
PMD C
PMD E
PID C
PID E
PID K
PID A
PI PHA 1
PI PHA 2
PI PHB 1
PI PHB 2
M1 = REAR PADDLE
MOTOR
RESISTANCE = 15.2

 1.5 Ω / PHASE
M2 = FRONT PADDLE
MOTOR
RESISTANCE = 15.2

 1.5 Ω / PHASE
PINCH ROLLER
MOTOR
RESISTANCE = 15.2

 1.5 Ω / PHASE
