388 Power Stacker
13. Align the holes in the stacker base with the holes in the cabinet floor.
(See Figure 68c and Figure 69.)
14. Install two 5/32 x 3/4 inch screws and washers to secure the vertical rails
to the upper frame cross-member.
15. Install four 7/64 x 1/2 inch screws and washers to secure the stacker
base to the cabinet floor. (See Figure 69.)
Stacker
Screw (4)
Base
Washer (4)
Screw (2)
Washer (2)
Vertical
Rail
NOTE: Stacker assembly
exploded to show mounting
screws and locations.

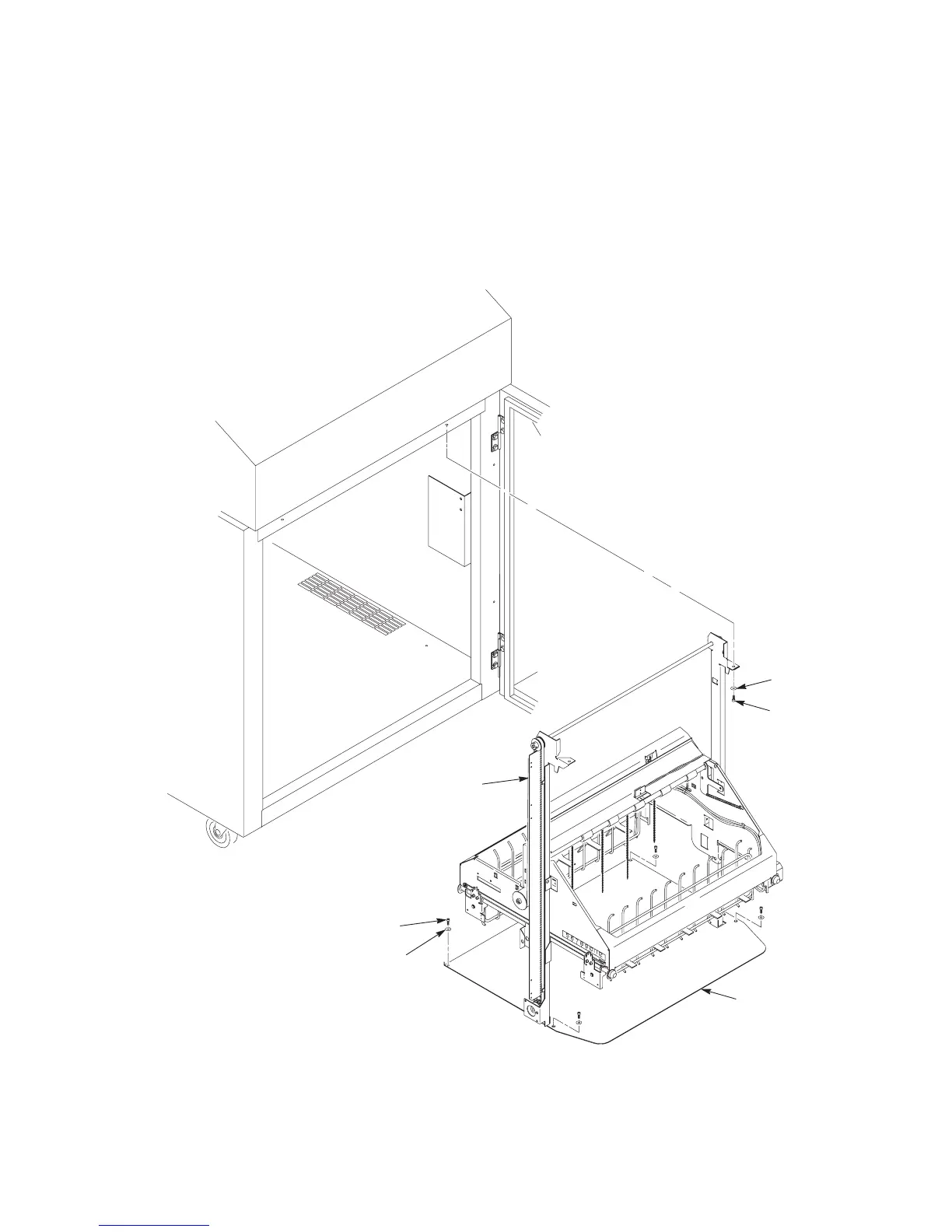

Figure 69. Stacker Fasteners
