• If you have a single node system conguration, use Figure 117 on page 139 and Table 13 on page
139 to determine the point-to-point cabling for UPIC cables.

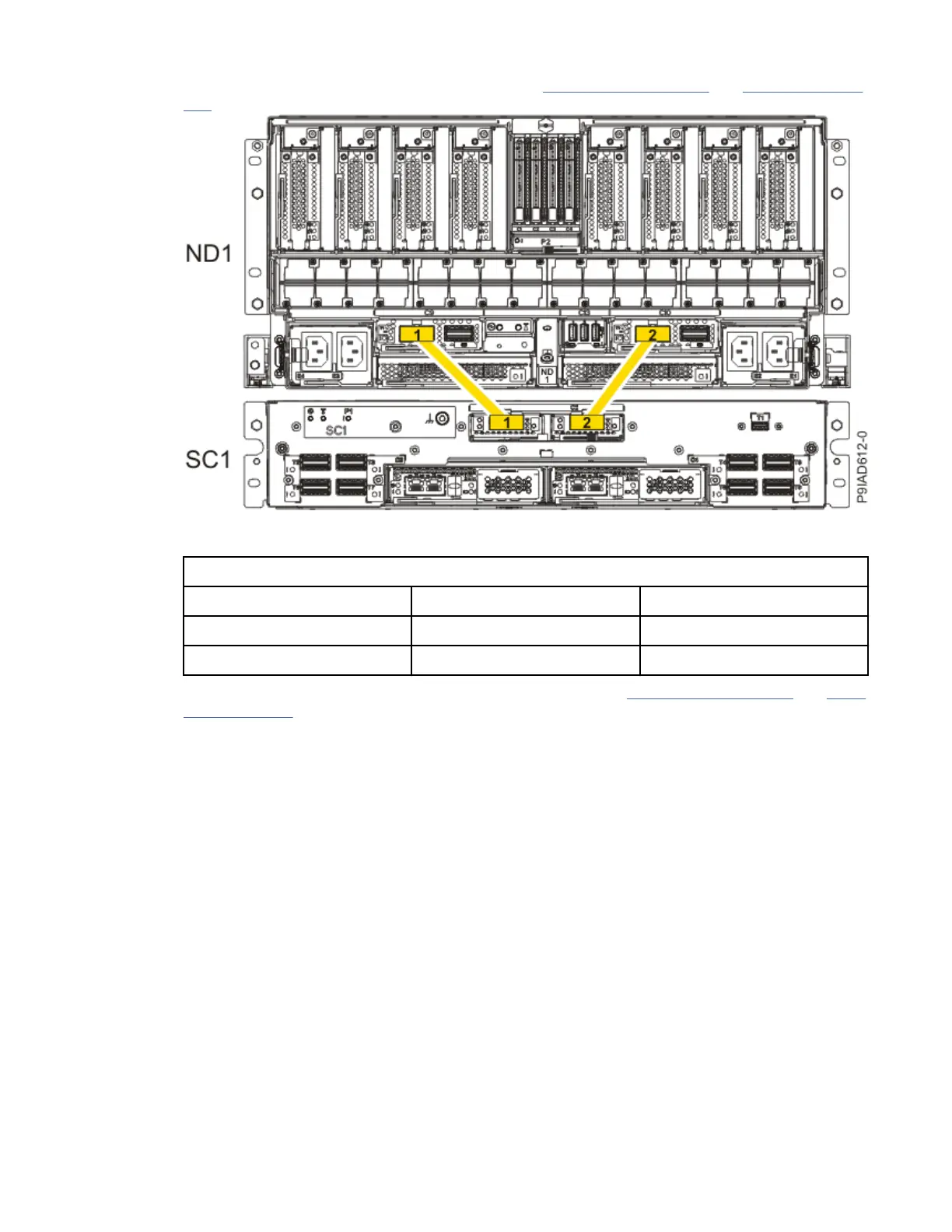

Figure 117. Single Node Conguration UPIC Cabling
Table 13. Single Node
Conguration UPIC Cabling
Cable number From To
1 SC1: P1-C1-T1 ND1: P1-C9-T1
2 SC1: P1-C2-T1 ND1: P1-C10-T1
• If you have a two, three, or four node system conguration, use Figure 118 on page 140 and Table
14 on page 140 to determine the point-to-point cabling for UPIC cables.
