a. Push the release latch (A) in the direction shown in the following îš³gure.
b. Slide the cover (B) off the system unit as shown in the following îš³gure. When the service access
cover has cleared the upper frame ledge, lift the cover up and off the system unit.

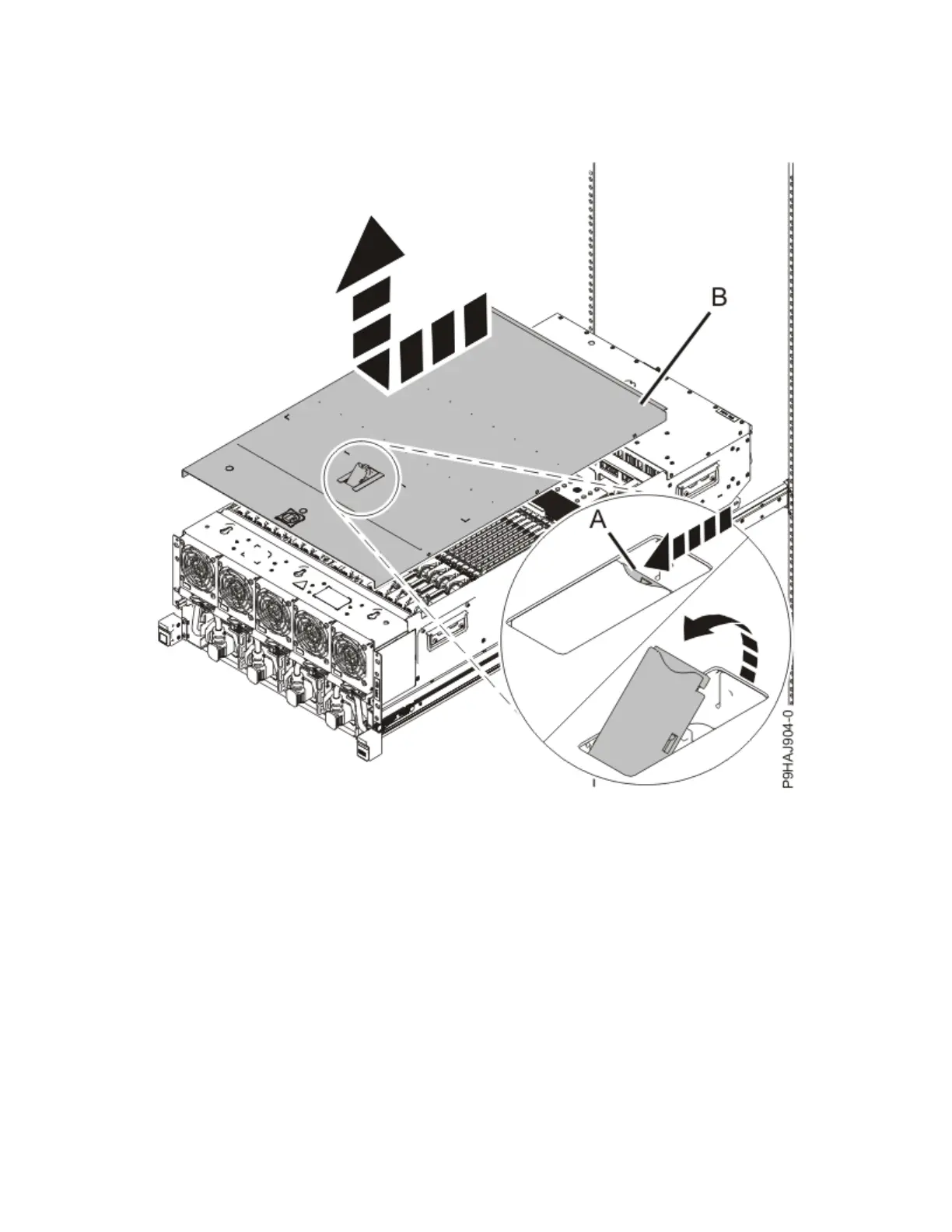

Figure 180. Removing the service access cover
7. To activate the identify LED for the locations for installing the memory modules, press and hold either
push-button on the trusted platform module card as shown in the following îš³gure.
Verify that the LED (A) is lit, which indicates that sufîš³cient power exists for the identify LED. If the LED
is not lit, use the location code to îš³nd the physical location by using the service label.
208
Power Systems: Removing and replacing parts in the 9080-M9S system
