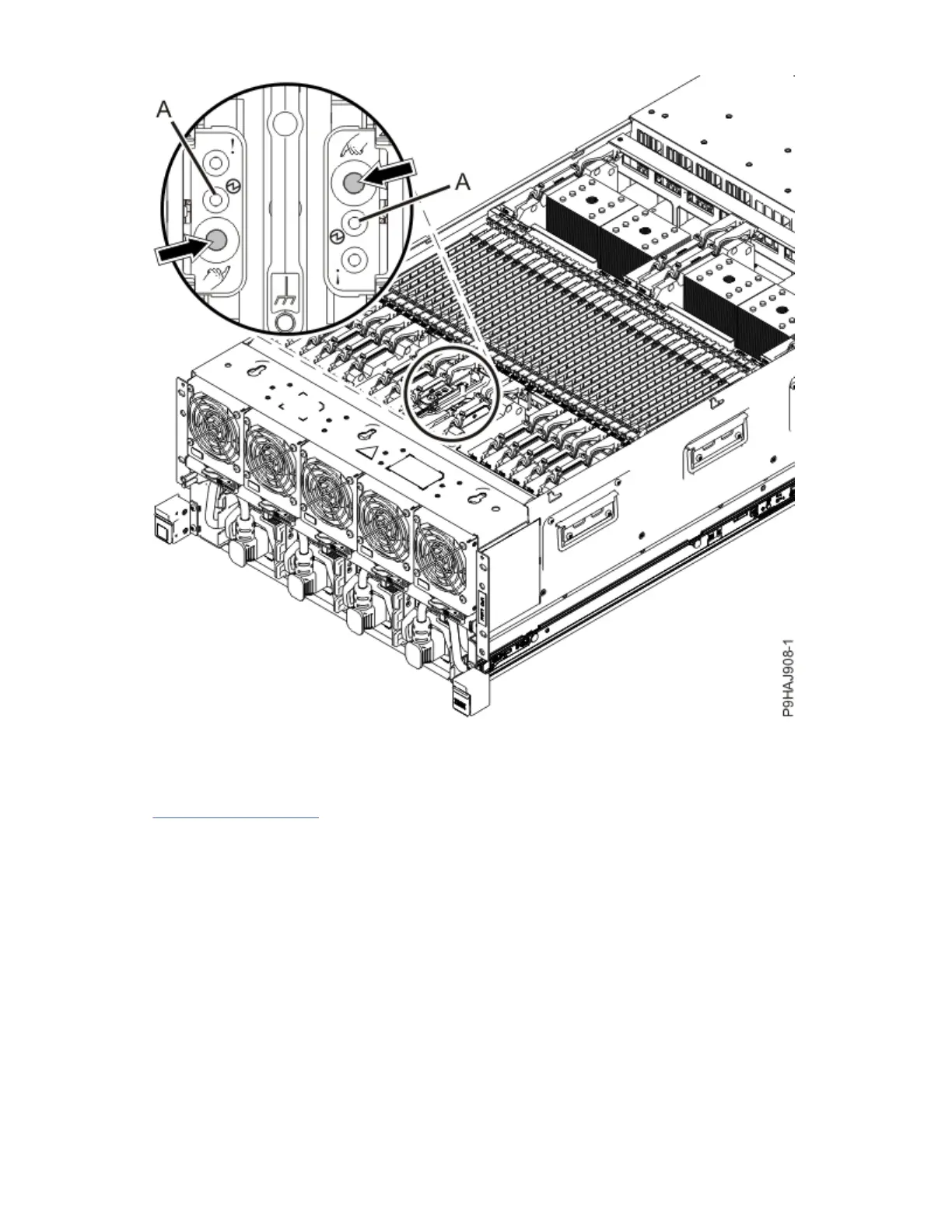

Figure 181. Activating the identify LED
8.
Locate the amber LED for the installation locations. Make a note of which locations are flashing; they
indicate the memory modules to install.
Figure 182 on page 210 shows the locations of the memory module. The LEDs are next to the memory
module.
Record the location of the identifying LED.
Memory modules
209
