• If you have a single node system conguration, use Figure 197 on page 230 and Table 29 on page
230 to determine the point-to-point cabling for UPIC cables.

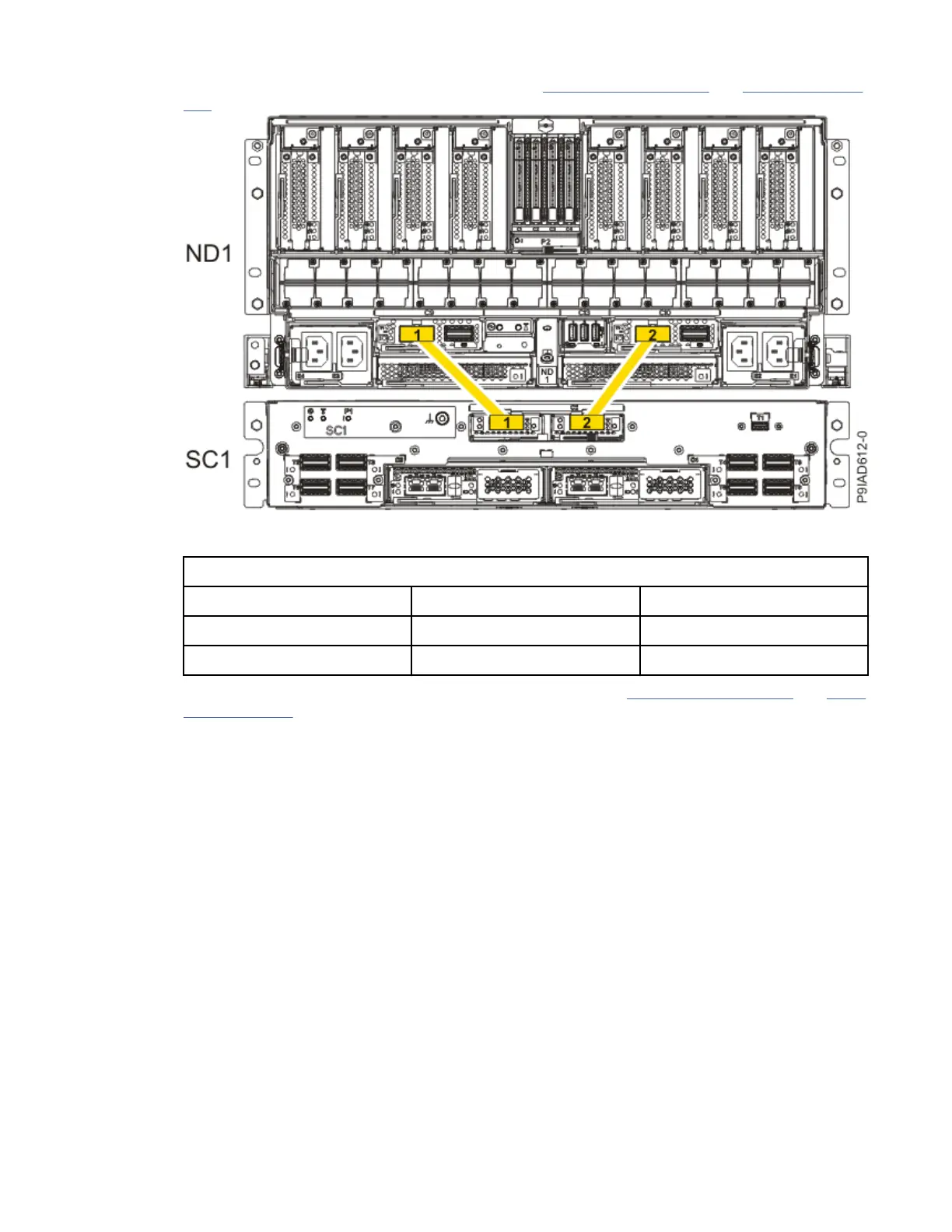

Figure 197. Single Node Conguration UPIC Cabling
Table 29. Single Node
Conguration UPIC Cabling
Cable number From To
1 SC1: P1-C1-T1 ND1: P1-C9-T1
2 SC1: P1-C2-T1 ND1: P1-C10-T1
• If you have a two, three, or four node system conguration, use Figure 198 on page 231 and Table
30 on page 231 to determine the point-to-point cabling for UPIC cables.
