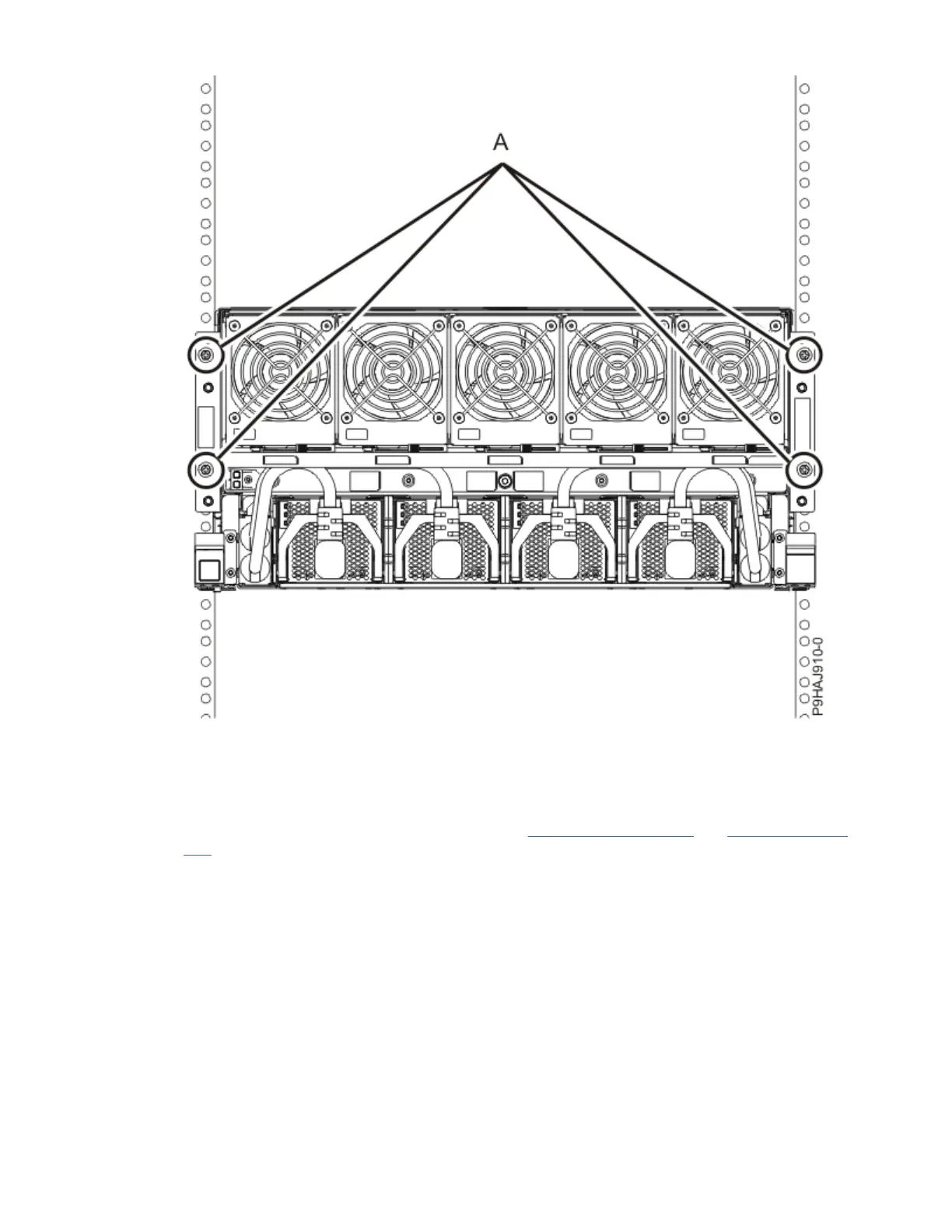

Figure 228. Replacing the front screws
4. Review the following information to identify the locations where each SMP cable connects to the
system node that you are servicing. Then, refer to your labels and the following steps to reconnect
the SMP cables that you removed from the system node you are servicing.
• If you have a two node system conguration, use Figure 229 on page 264 and Table 33 on page
264 to determine the point-to-point cabling for SMP cables.
Memory VRMs
263
