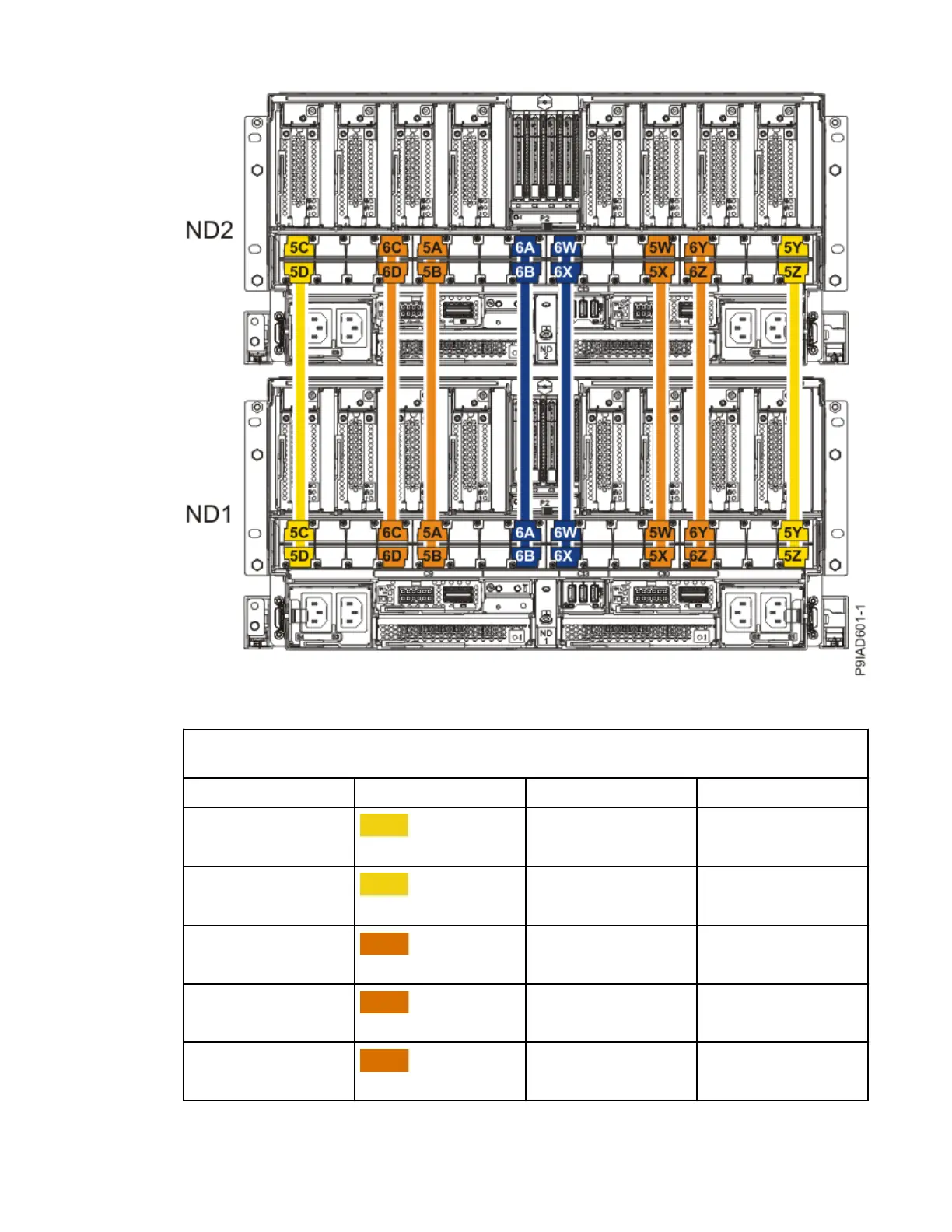

Figure 229. Cabling a Two Node
Conîš³guration
Table 33. Cabling a Two Node
Conîš³guration.
Each connection that is shown in the diagram
represents a pair of SMP cables.
Cable
Cable type and length
F
rom
To
5C
880 mm (2.9
ft)
ND1-P1-T1
ND2-P1-T1
5D
880 mm (2.9
ft)
ND1-P1-T2
ND2-P1-T2
6C
1005 mm (3.3
ft)
ND1-P1-T7
ND2-P1-T7
6D
1005 mm (3.3
ft)
ND1-P1-T8
ND2-P1-T8
5A
1005 mm (3.3
ft)
ND1-P1-T9
ND2-P1-T9
264
Power Systems: Removing and replacing parts in the 9080-M9S system
