IBM 9080-M9S

• If you have a single node system conguration, use Figure 237 on page 277 and Table 36 on page
277 to determine the point-to-point cabling for UPIC cables.

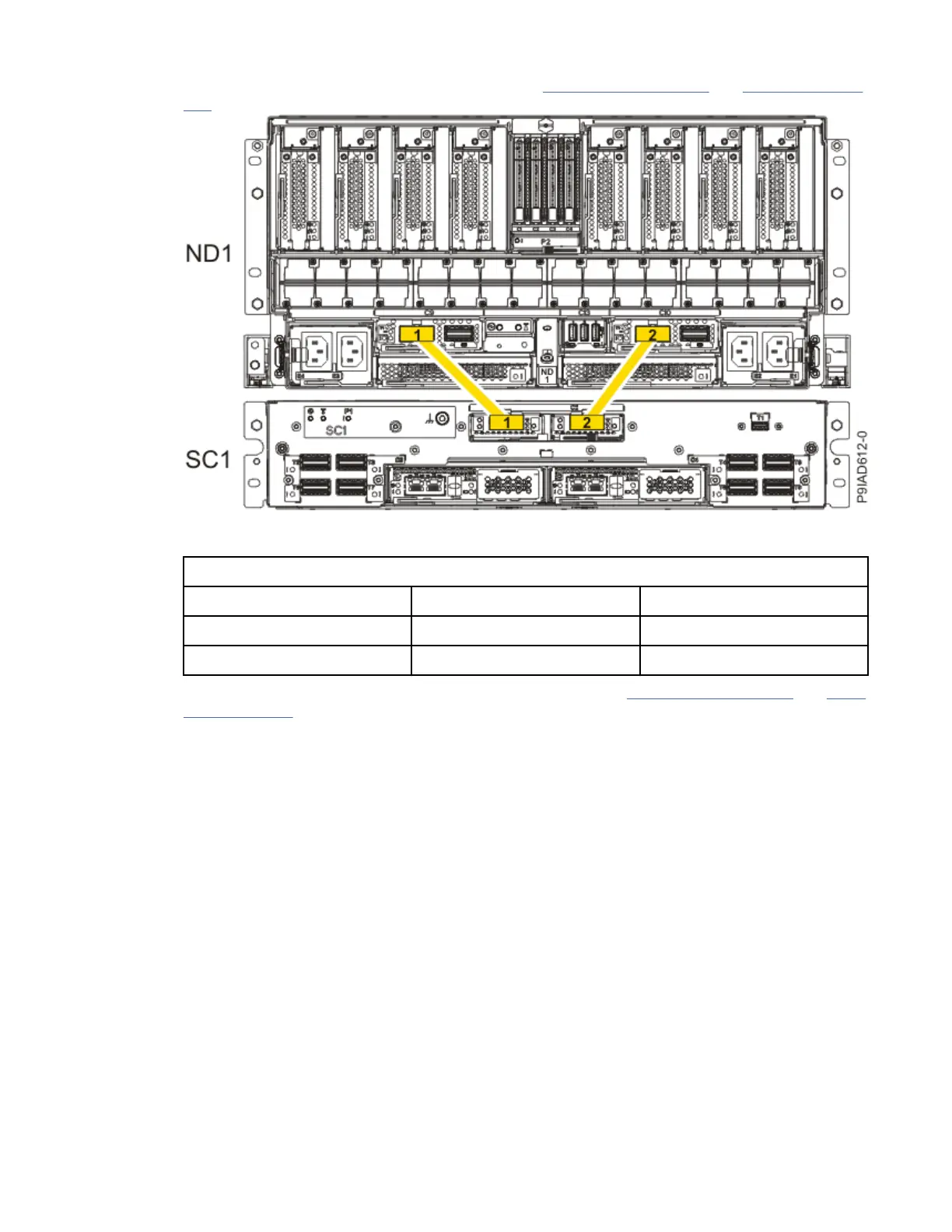

Figure 237. Single Node Conguration UPIC Cabling
Table 36. Single Node
Conguration UPIC Cabling
Cable number From To
1 SC1: P1-C1-T1 ND1: P1-C9-T1
2 SC1: P1-C2-T1 ND1: P1-C10-T1
• If you have a two, three, or four node system conguration, use Figure 238 on page 278 and Table
37 on page 278 to determine the point-to-point cabling for UPIC cables.
Memory VRMs
277
