• If you have a single node system conguration, use Figure 317 on page 371 and Table 50 on page
371 to determine the point-to-point cabling for UPIC cables.

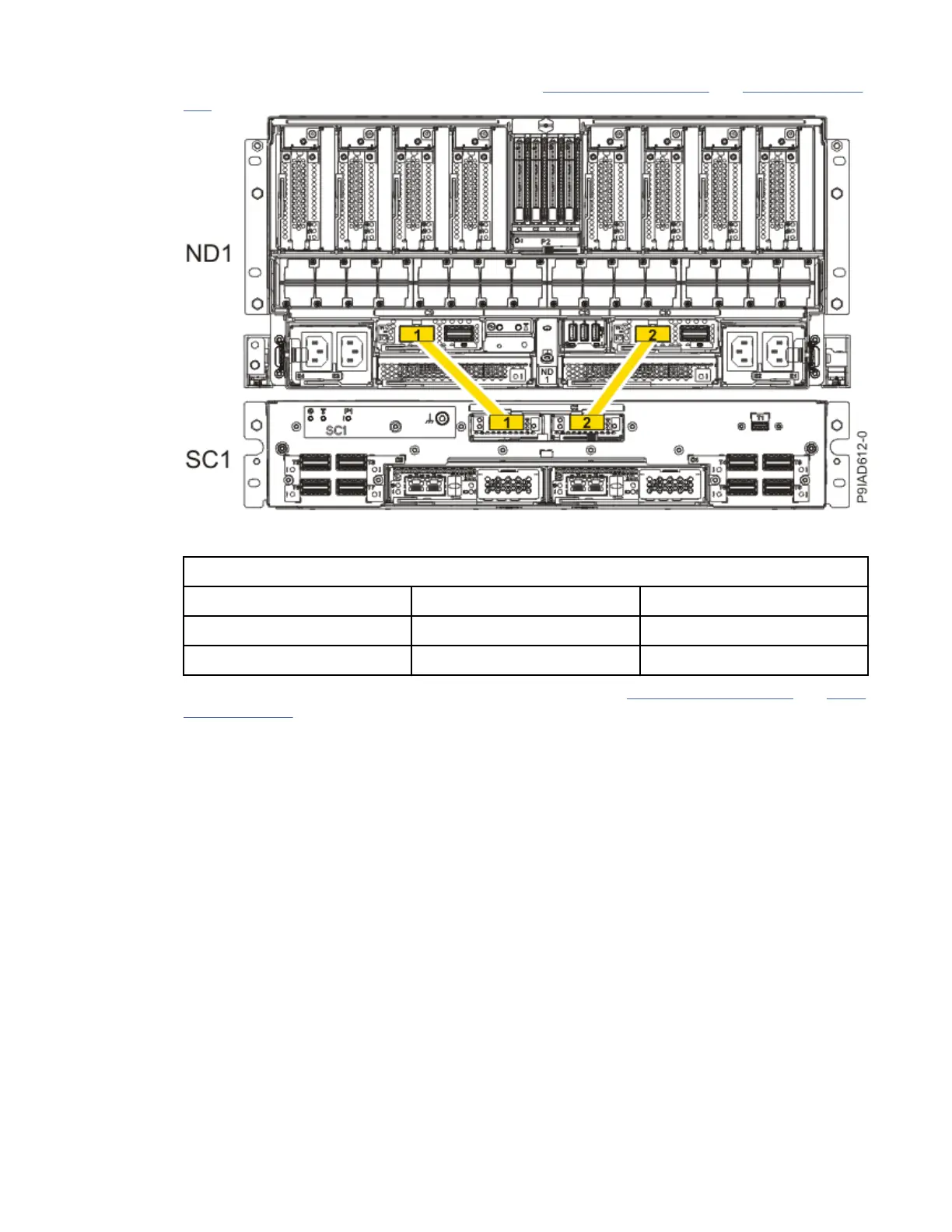

Figure 317. Single Node Conîš³guration UPIC Cabling
Table 50. Single Node
Conîš³guration UPIC Cabling
Cable number From To
1 SC1: P1-C1-T1 ND1: P1-C9-T1
2 SC1: P1-C2-T1 ND1: P1-C10-T1
• If you have a two, three, or four node system conguration, use Figure 318 on page 372 and Table
51 on page 372 to determine the point-to-point cabling for UPIC cables.
