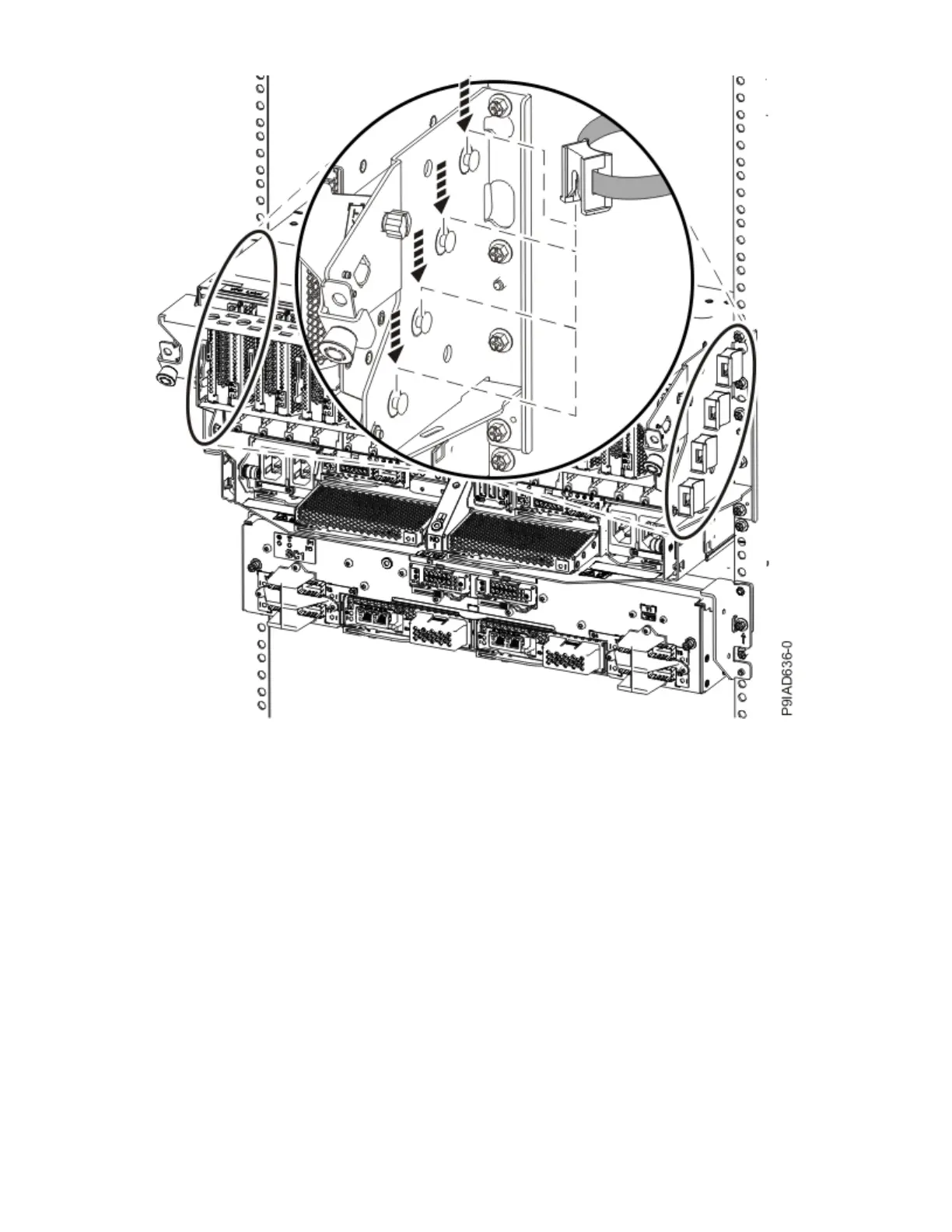

Figure 31. Attaching a cable clip
To determine how to bundle the cables and where to attach the cable bundles, refer to the information
card inserted into the rear of the system control unit. You can also refer to the following gures. The
number in the cable label indicates the bundle for that cable.
Two system node conguration: The two system node conguration has four cable bundles.
Cables
39
