• If you have a single node system conguration, use Figure 481 on page 555 and Table 58 on
page 555 to determine the point-to-point cabling for UPIC cables.

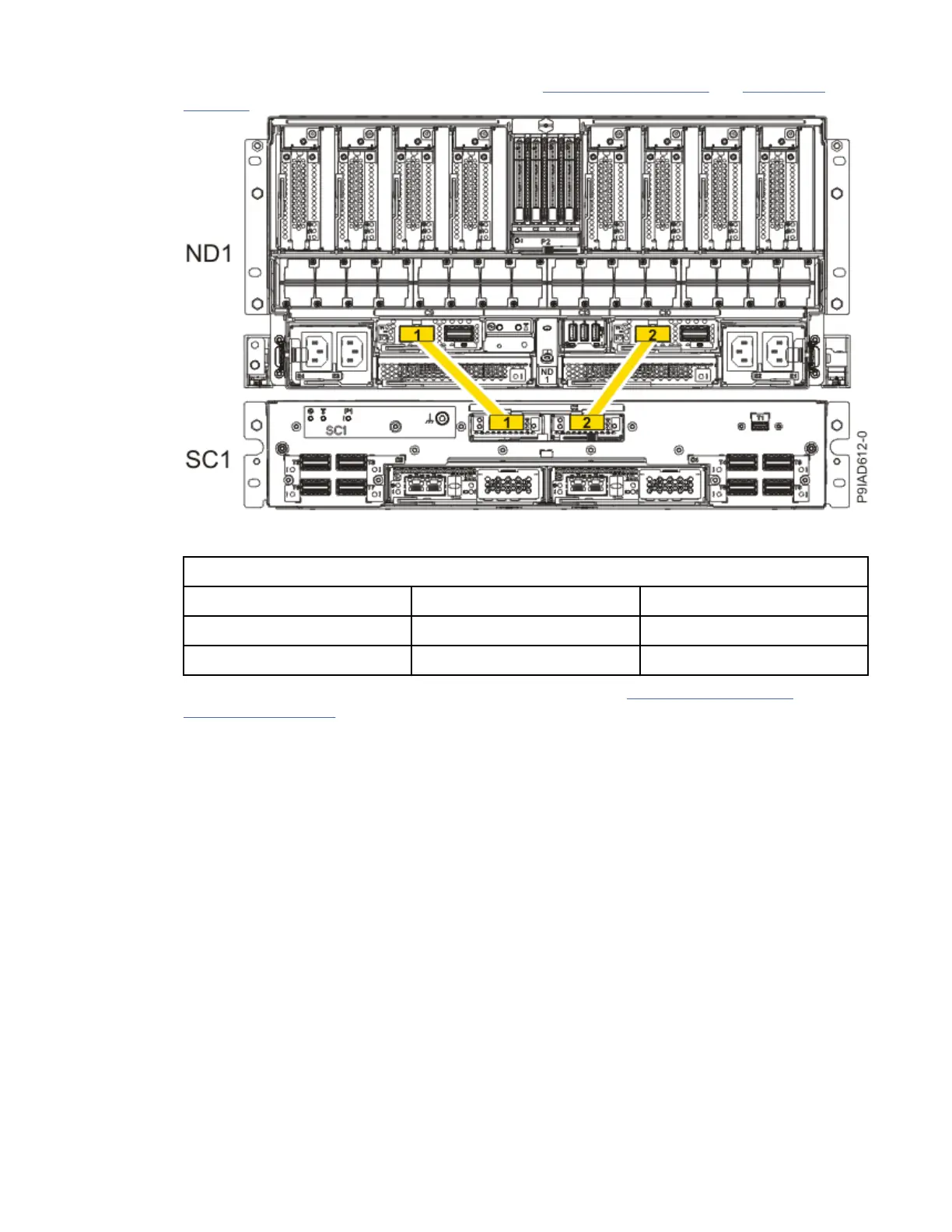

Figure 481. Single Node Conîš³guration UPIC Cabling
Table 58. Single Node
Conîš³guration UPIC Cabling
Cable number From To
1 SC1: P1-C1-T1 ND1: P1-C9-T1
2 SC1: P1-C2-T1 ND1: P1-C10-T1
• If you have a two, three, or four node system conguration, use Figure 482 on page 556 and
Table 59 on page 556 to determine the point-to-point cabling for UPIC cables.
Processor VRM
555
