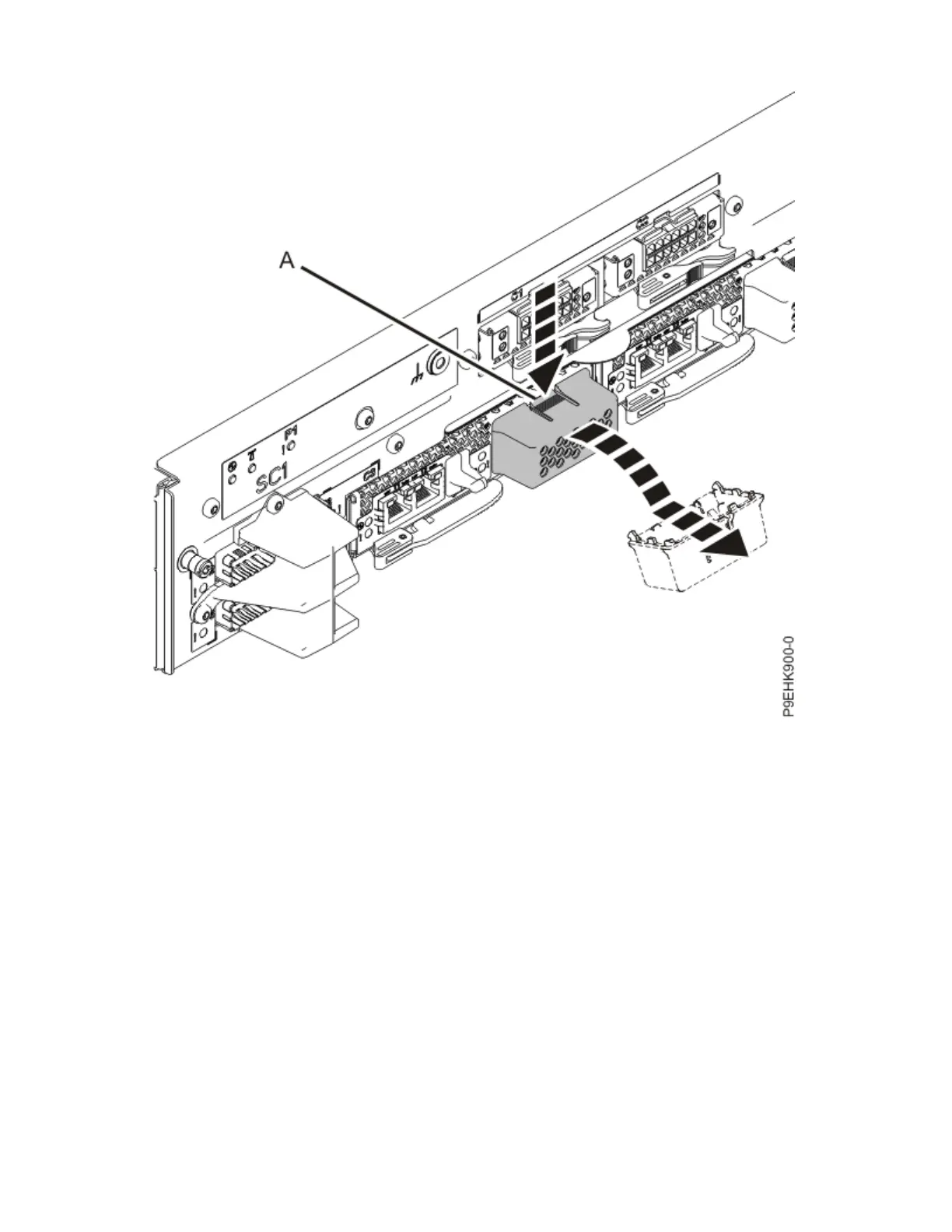

Figure 496. Removing the time-of day battery cover
4. Remove the protective plastic insulator (B) from the time-of day battery, to allow the time-of-day
battery to make contact with the service processor card as shown in the following gure.
