IBM 9080-M9S

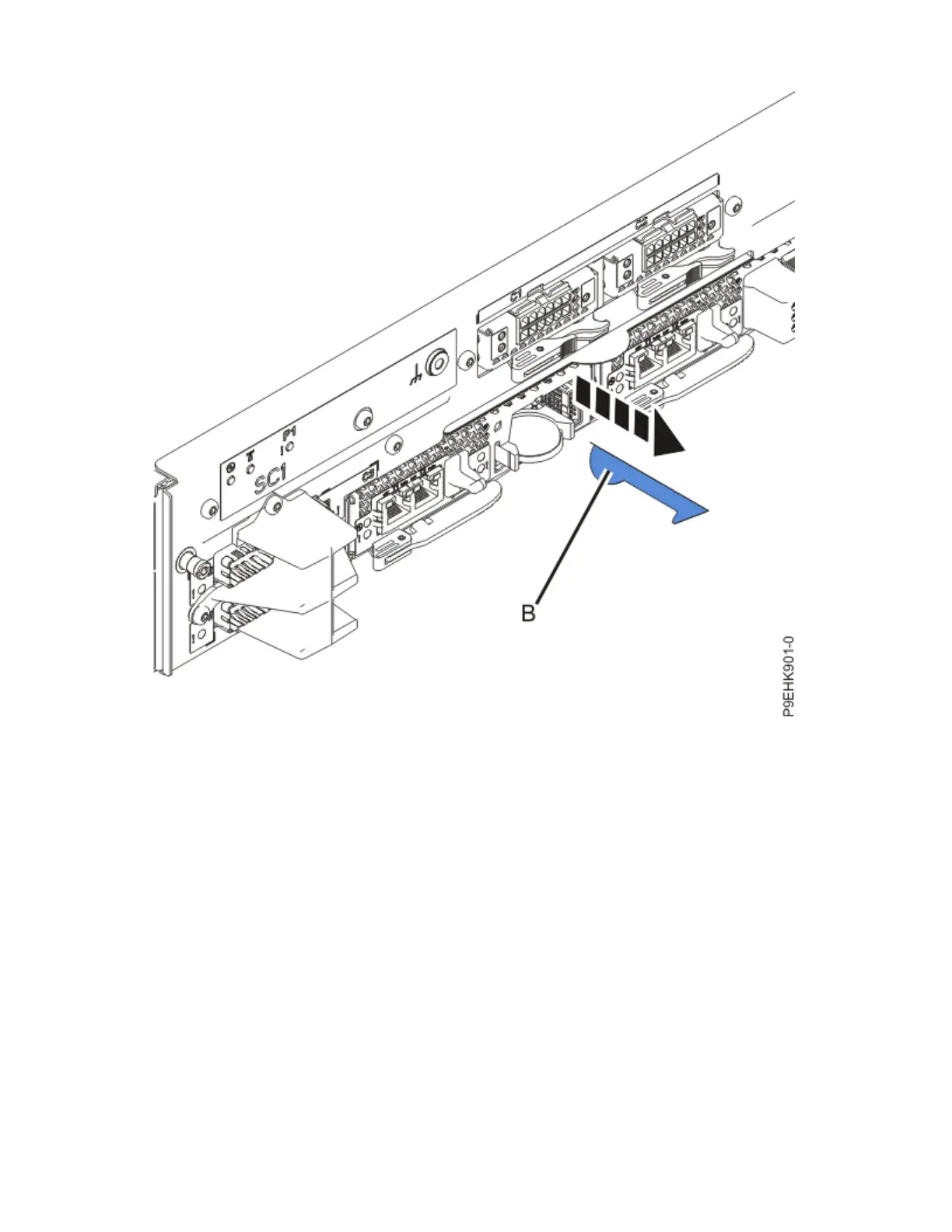

Figure 497. Removing the protective plastic insulator
5. Align the bottom tabs of the time-of day battery cover in the two slots under the battery as shown in
the following gure. Roll the battery cover up and secure the cover to the service processor card.
Service processor cards
573
