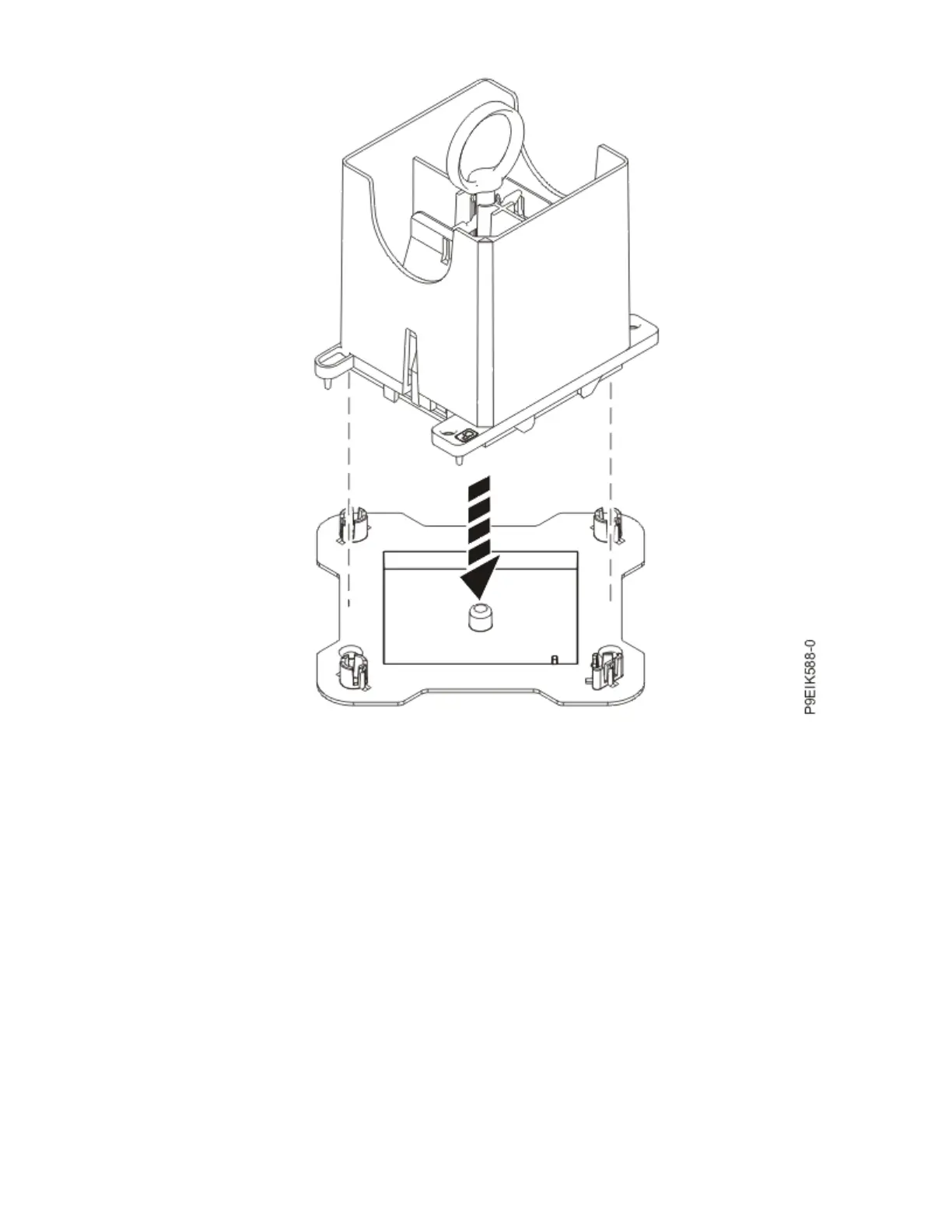

Figure 521. Placing the tool at an angle on the top cover of the packaging
k) Release the system processor module by pushing the ring (B) downwards. Hold the ring (B) down
while pushing the blue tabs (C) inwards as shown in the following îš³gure. Ensure that the ring
catches the openings on the blue tabs, and that the blue tabs are locked in a îš³xed position.
To prevent the system processor module from falling, pull up on the round lever before you place
the tool on the top cover of the system processor module packaging.
System backplanes
599
