IBM 9080-M9S

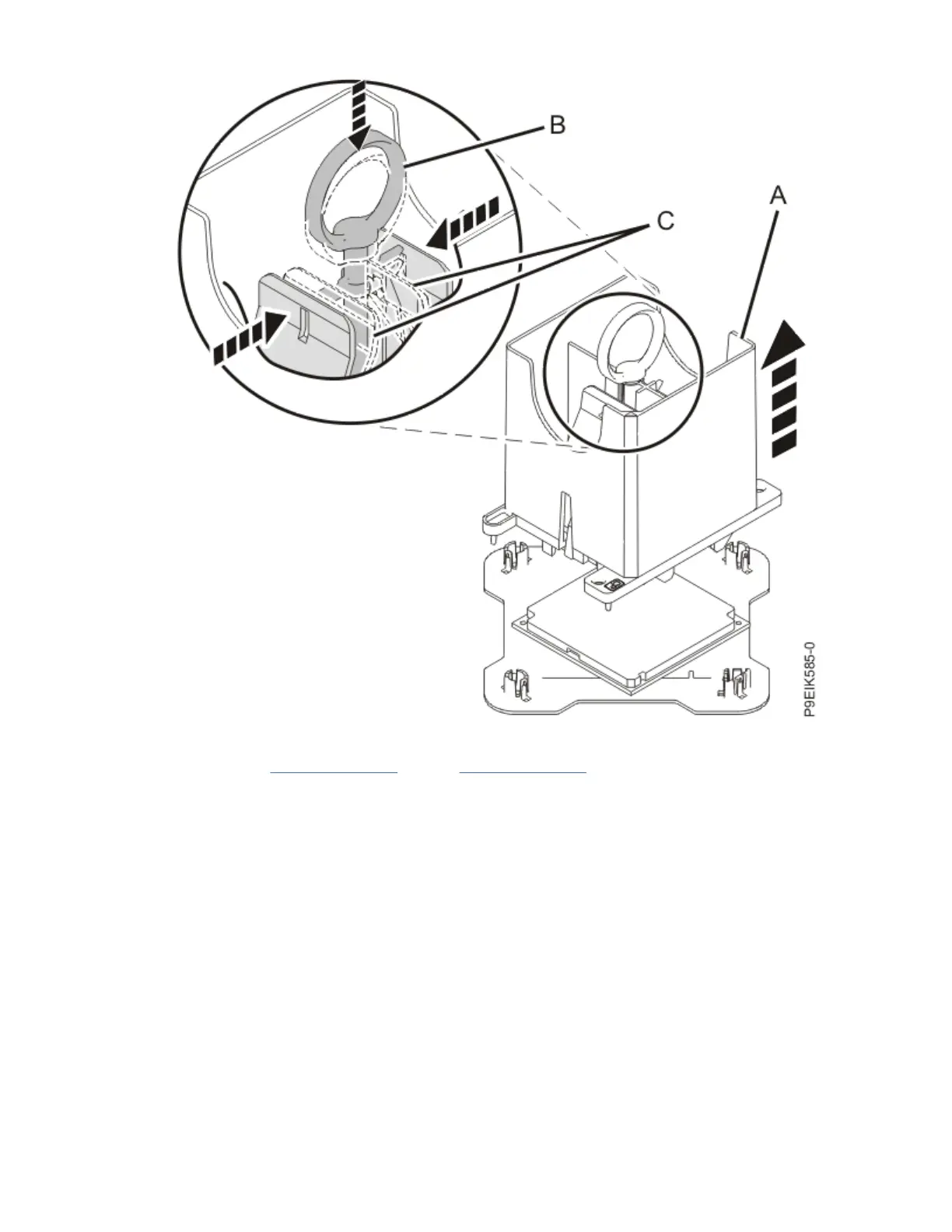

Figure 522. Releasing the system processor module from the tool
l) Repeat steps “5.a” on page 592 through “5.k” on page 599 to remove each heat sink and system
processor module one at a time.
6. Remove the chassis.
a) Use a T15 Torx driver to remove eight screws from each side of the chassis as shown in the
following gures.
600
Power Systems: Removing and replacing parts in the 9080-M9S system
