IBM 9080-M9S

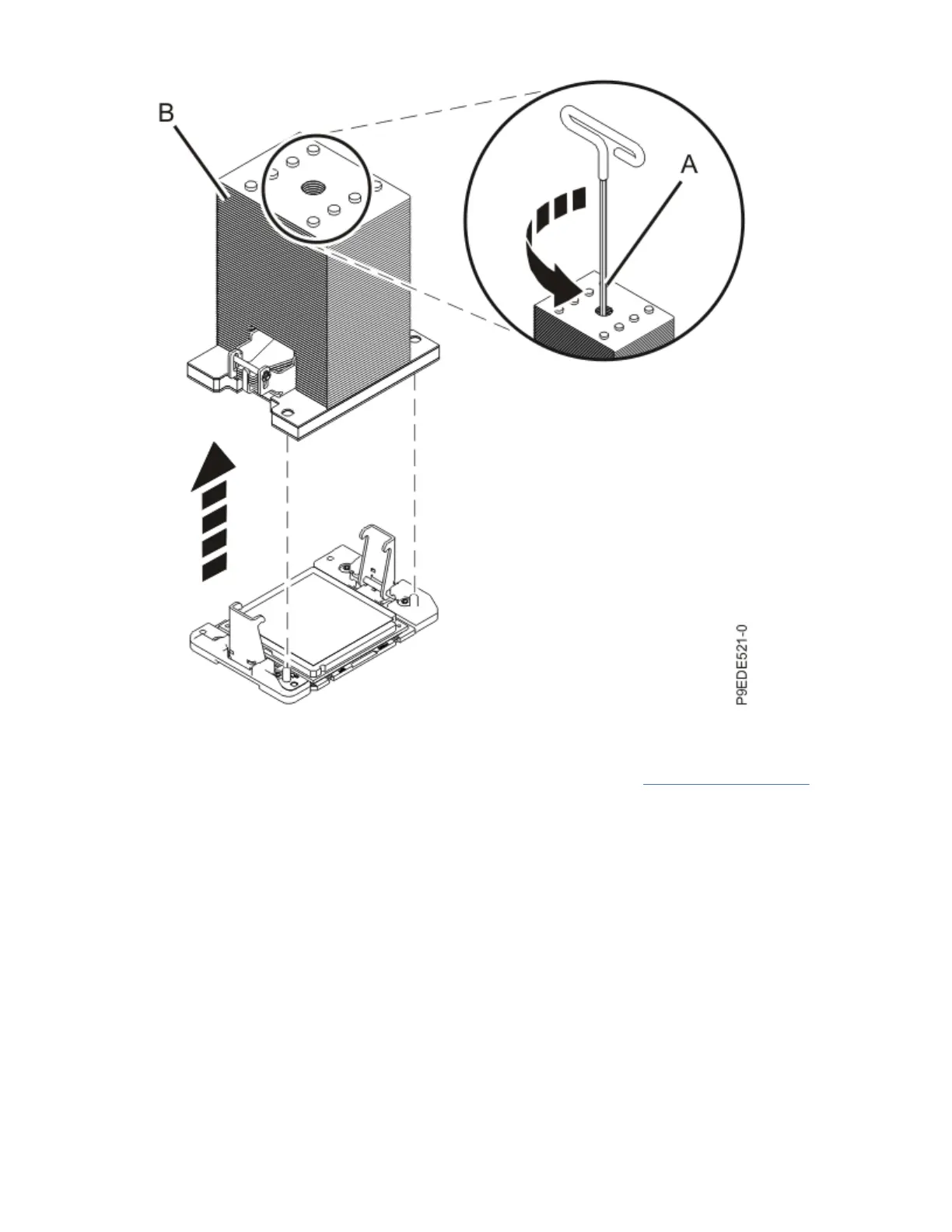

Figure 566. Removing the heat sink
4. Prepare the system processor module for removal by completing the following steps.
a) Ensure that the removal tool (A) is in the open position as shown in Figure 567 on page 647. The
middle ring (B) must be pushed down and blue tabs (C) must be turned inward.
