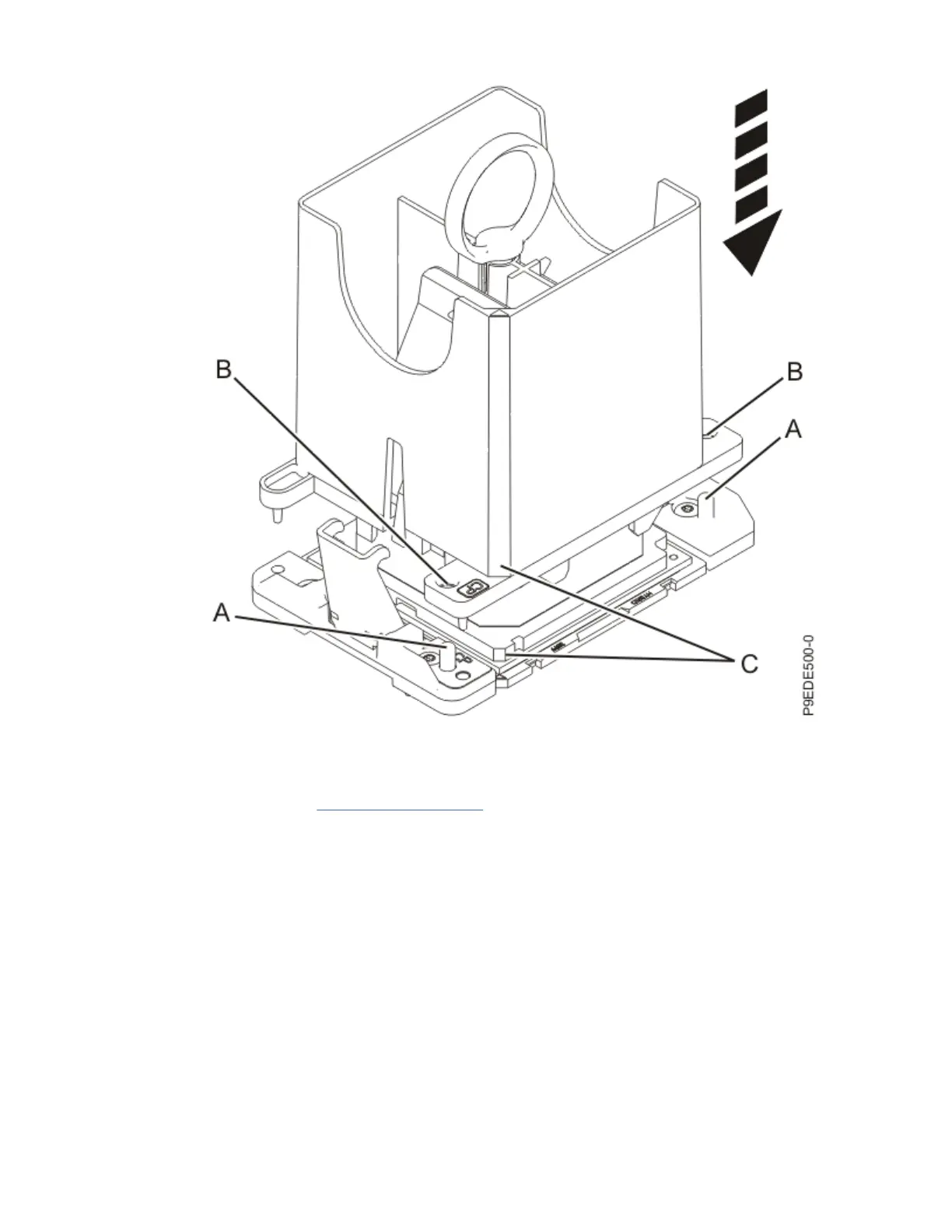

Figure 568. Lowering the removal tool onto the system processor module
d) With the removal tool sitting on top of the system processor module, push down on the ring (A)
slightly so that the blue tabs (B) snap outward and the jaws engage with the system processor
module as shown in Figure 569 on page 649.
Make sure that both of the tool jaws are locked onto the system processor module by pushing down
on the tool.
Important: Do not press the blue release ring until directed to do so later.
648
Power Systems: Removing and replacing parts in the 9080-M9S system
