• If you have a single node system conguration, use Figure 598 on page 683 and Table 65 on
page 683 to determine the point-to-point cabling for UPIC cables.

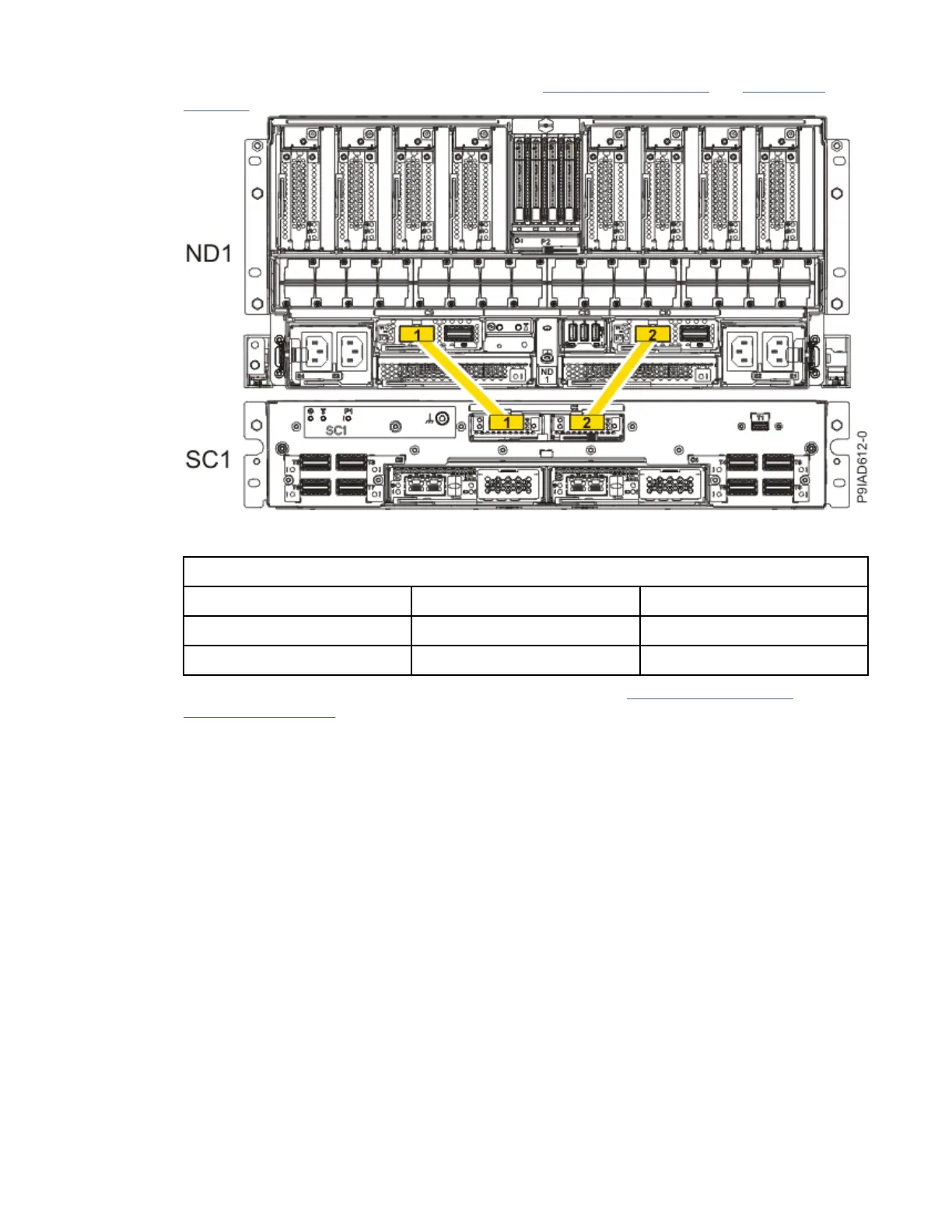

Figure 598. Single Node Conîš³guration UPIC Cabling
Table 65. Single Node
Conîš³guration UPIC Cabling
Cable number From To
1 SC1: P1-C1-T1 ND1: P1-C9-T1
2 SC1: P1-C2-T1 ND1: P1-C10-T1
• If you have a two, three, or four node system conguration, use Figure 599 on page 684 and
Table 66 on page 684 to determine the point-to-point cabling for UPIC cables.
System processor module
683
