Chapter 4. IBM System x3690 X5 161

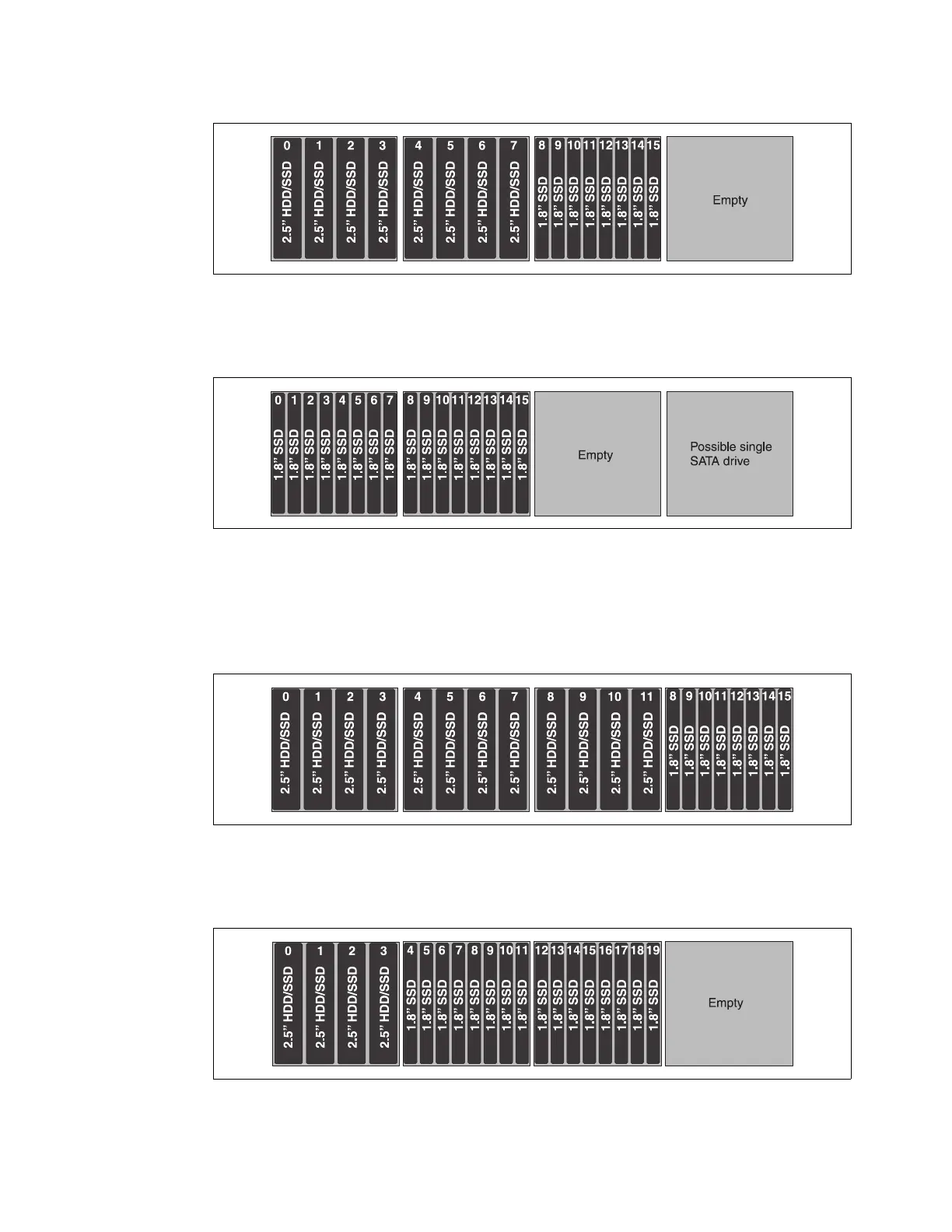

Figure 4-38 x3690 with two 4x 2.5-inch backplanes and one IBM eXFlash 8x 1.8-inch SSD backplane
Figure 4-39 shows two 8x eXFlash backplanes. Using these two backplanes requires four
SAS cables. Figure 4-39 also shows the use of a single SATA drive.
Figure 4-39 x3690 X5 with two IBM eXFlash 8x 1.8-inch SSD backplanes and a single SATA drive
Configurations with 20 drives
Figure 4-40 shows a full complement of drives using three 4x backplanes and one 8x eXFlash
backplane. Also, you can achieve this configuration with one 8x backplane, and one 4x and
one 8x eXFlash. Either configuration uses five SAS cables.
Figure 4-40 x3690 X5 with three 4x 2.5-inch backplanes and one IBM eXFlash 8x 1.8” SSD backplane
Figure 4-41 shows one 4x backplane and two 8x eXFlash backplanes. Five SAS cables are
needed.
Figure 4-41 x3690 X5 with one 4x 2.5-inch backplane and two IBM eXFlash 8x 1.8” SSD backplanes
