Chapter 8. IBM BladeCenter HX5 395

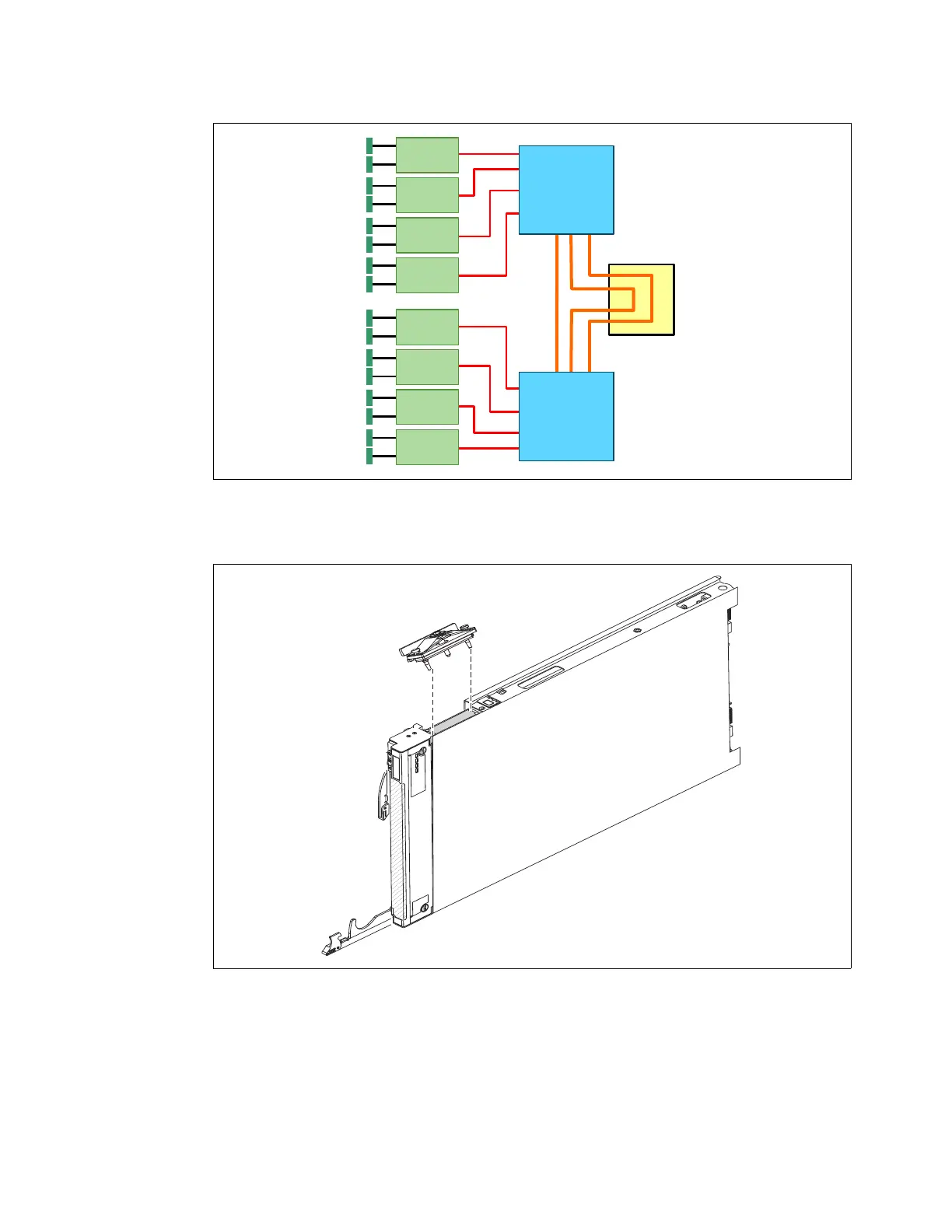

Figure 8-29 HX5 1-Node Speed Burst Card block diagram
Figure 8-30 shows where the Speed Burst Card is installed on the HX5.
Figure 8-30 Installing the Speed Burst Card
SMI
links
QPI
links
16 DDR3 memory DIMMs: one DIMM per channel
Memory
buffer
Memory
buffer
Memory
buffer
Memory
buffer
Memory
buffer
Memory
buffer
Memory
buffer
Memory
buffer
Speed
Burst
Card
Intel
Xeon
Processor 2
Intel
Xeon
Processor 1
