IBM Flex System V7000 User Manual

Chapter 3. Systems management 123

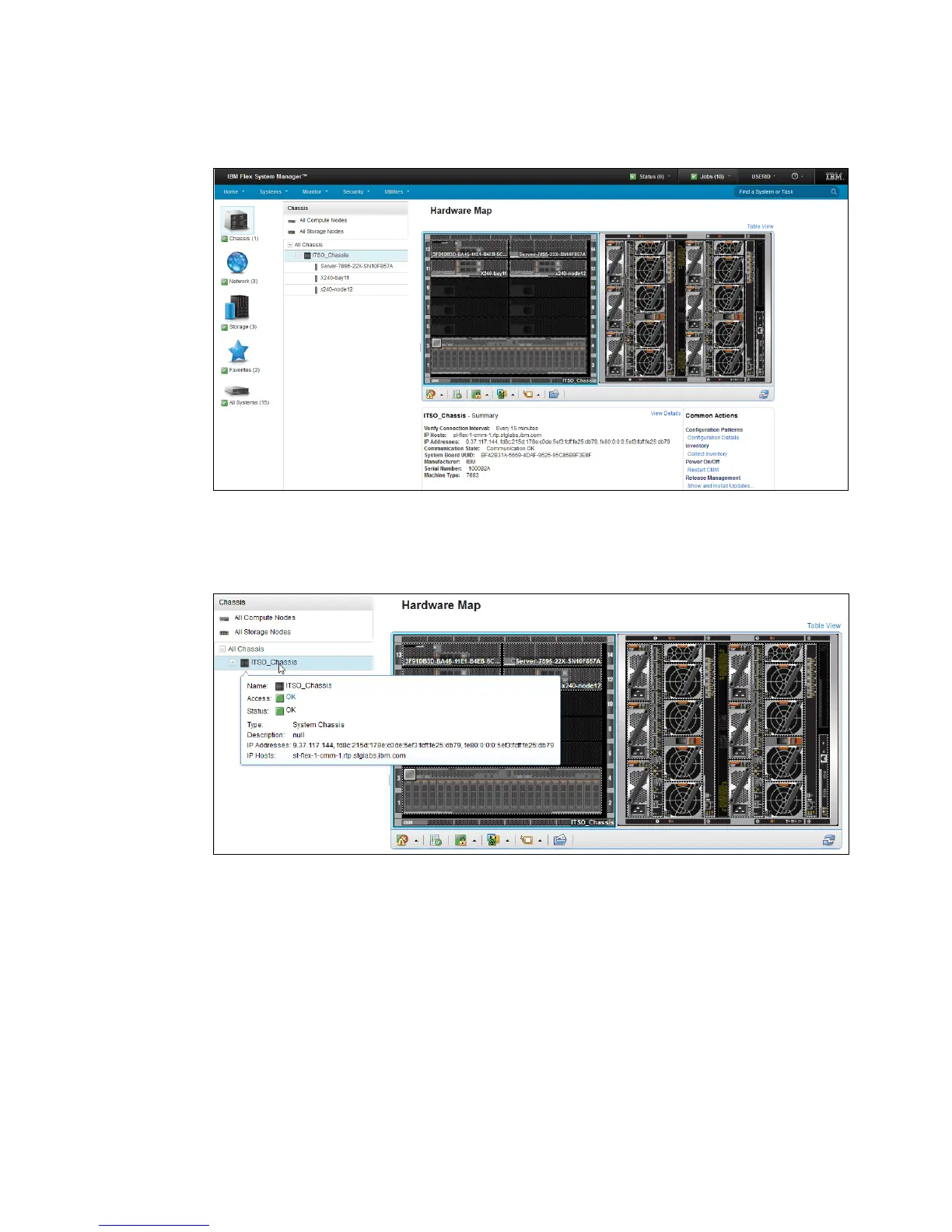

The Chassis page gives you an overview of what is installed in one or more chassis, as
shown in Figure 3-57.
Figure 3-57 IBM FSM Explorer
To get to the chassis map, click the chassis in the vertical menu in Figure 3-56 on page 122,
then click the chassis under the chassis list as shown in Figure 3-58.
Figure 3-58 IBM FSM Explorer home tab - chassis map

IBM Flex System V7000 Specifications

General

Form Factor	2U
Model	IBM Flex System V7000
Category	Storage
Power Supply	Dual redundant power supplies
Storage Controller	Dual active-active controllers
RAID Levels	RAID 0, 1, 5, 6, 10
Maximum Drives	240
Expansion Enclosures	Up to 9
Drive Types Supported	SSD, HDD
Host Interface Ports	8 Gbps FC
Scalability	Scalable with expansion enclosures
Operating Temperature	5°C to 40°C
Management Interface	Web-based GUI, CLI, SMI-S
