124 IBM Flex System V7000 Storage Node Introduction and Implementation Guide

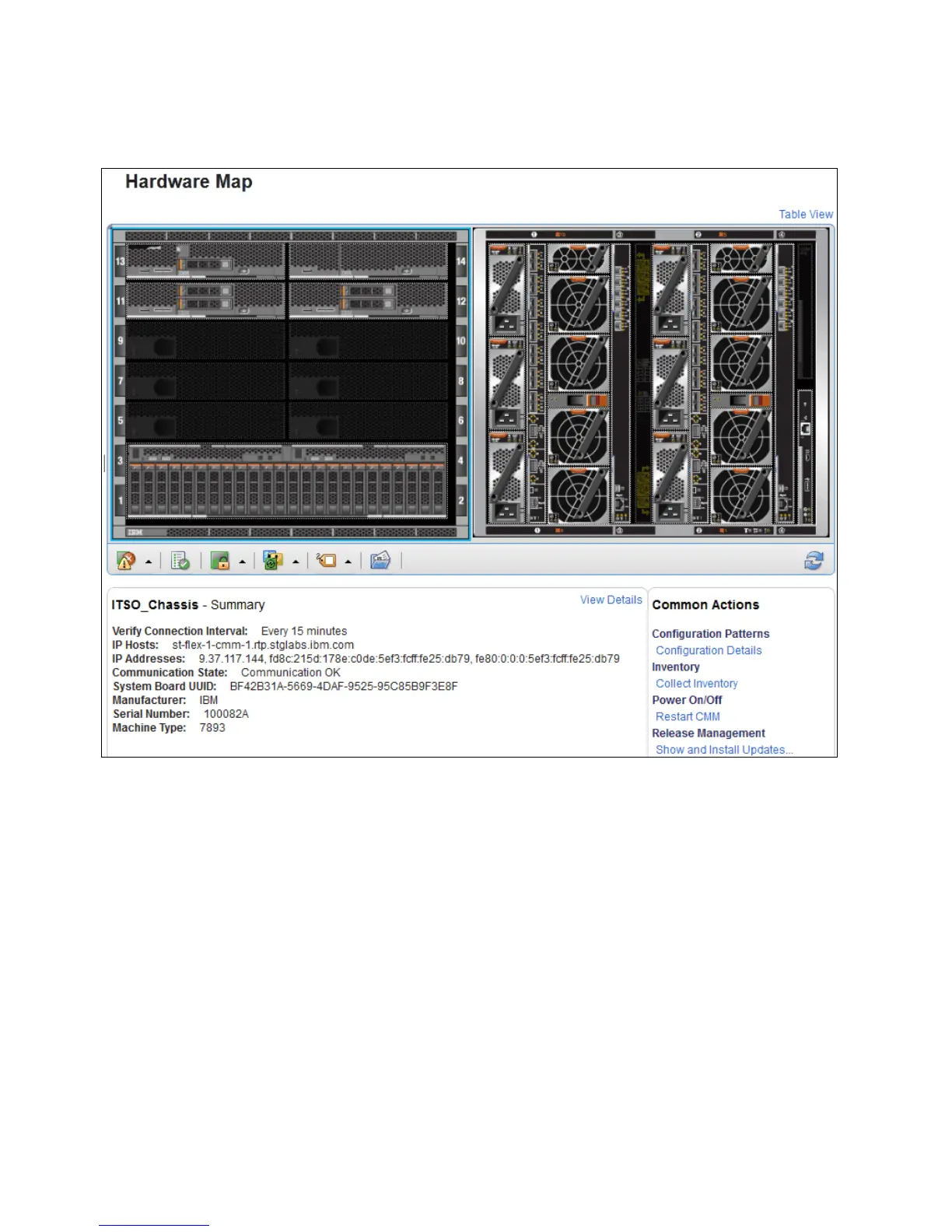

The chassis view shows a map of the front and back with a graphical representation of the
components, as shown in Figure 3-59.
Figure 3-59 IBM FSM Explorer chassis map
To get detailed information about the chassis and chassis components, click View Details in
the summary field of Figure 3-59.

IBM Flex System V7000 Specifications

General

Form Factor	2U
Model	IBM Flex System V7000
Category	Storage
Power Supply	Dual redundant power supplies
Storage Controller	Dual active-active controllers
RAID Levels	RAID 0, 1, 5, 6, 10
Maximum Drives	240
Expansion Enclosures	Up to 9
Drive Types Supported	SSD, HDD
Host Interface Ports	8 Gbps FC
Scalability	Scalable with expansion enclosures
Operating Temperature	5°C to 40°C
Management Interface	Web-based GUI, CLI, SMI-S
