IBM Flex System V7000 User Manual

Chapter 3. Systems management 125

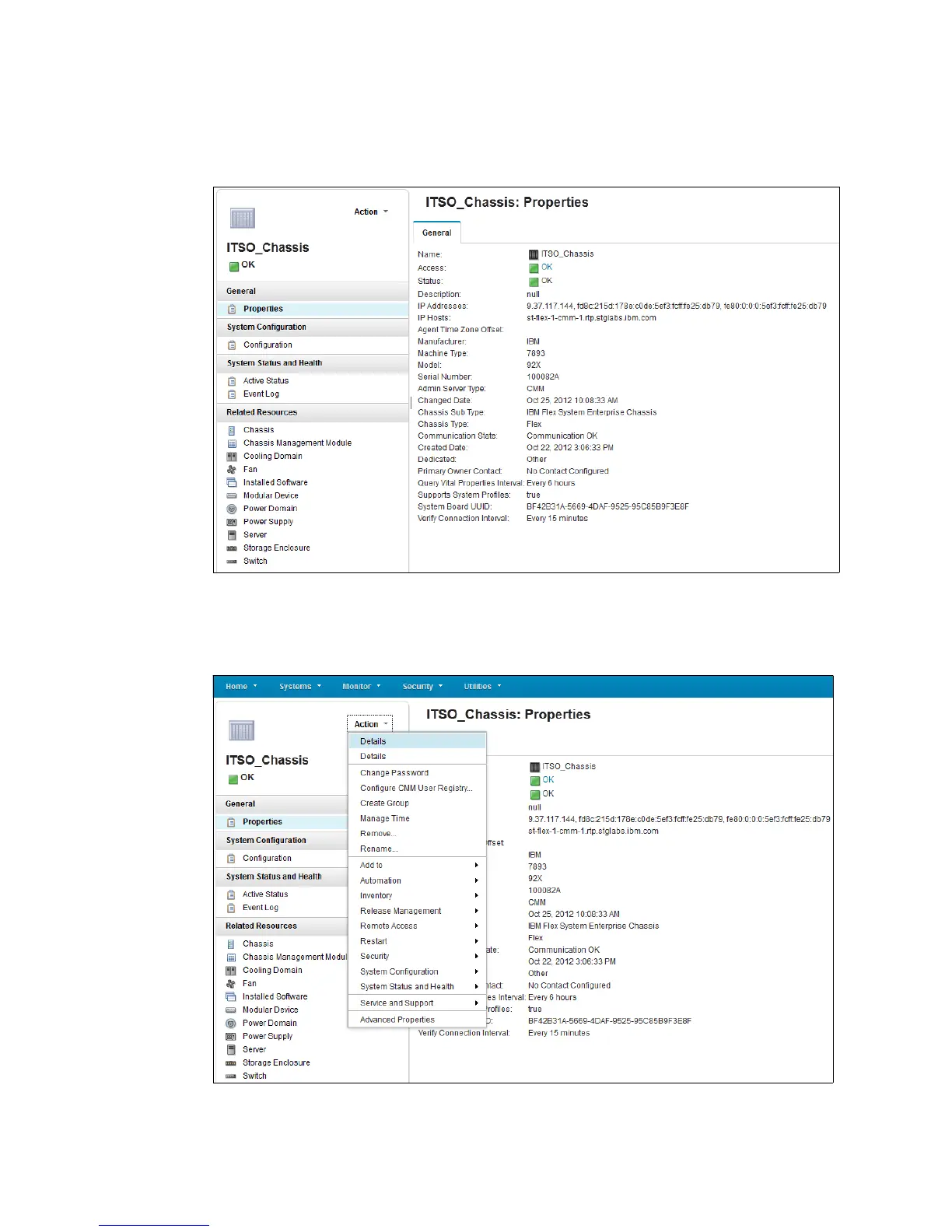

As shown in Figure 3-60,
Common Actions for chassis are shown below the Hardware map at
the left side. The detailed information regarding the chassis is shown below the Hardware
map at the right side.
Figure 3-60 IBM FSM Explorer chassis details
A drop-down menu shows the actions that can be performed at the Chassis level, as shown in
Figure 3-61.
Figure 3-61 IBM FSM Explorer - Component Actions

IBM Flex System V7000 Specifications

General

Form Factor	2U
Model	IBM Flex System V7000
Category	Storage
Power Supply	Dual redundant power supplies
Storage Controller	Dual active-active controllers
RAID Levels	RAID 0, 1, 5, 6, 10
Maximum Drives	240
Expansion Enclosures	Up to 9
Drive Types Supported	SSD, HDD
Host Interface Ports	8 Gbps FC
Scalability	Scalable with expansion enclosures
Operating Temperature	5°C to 40°C
Management Interface	Web-based GUI, CLI, SMI-S
