126 IBM Flex System V7000 Storage Node Introduction and Implementation Guide

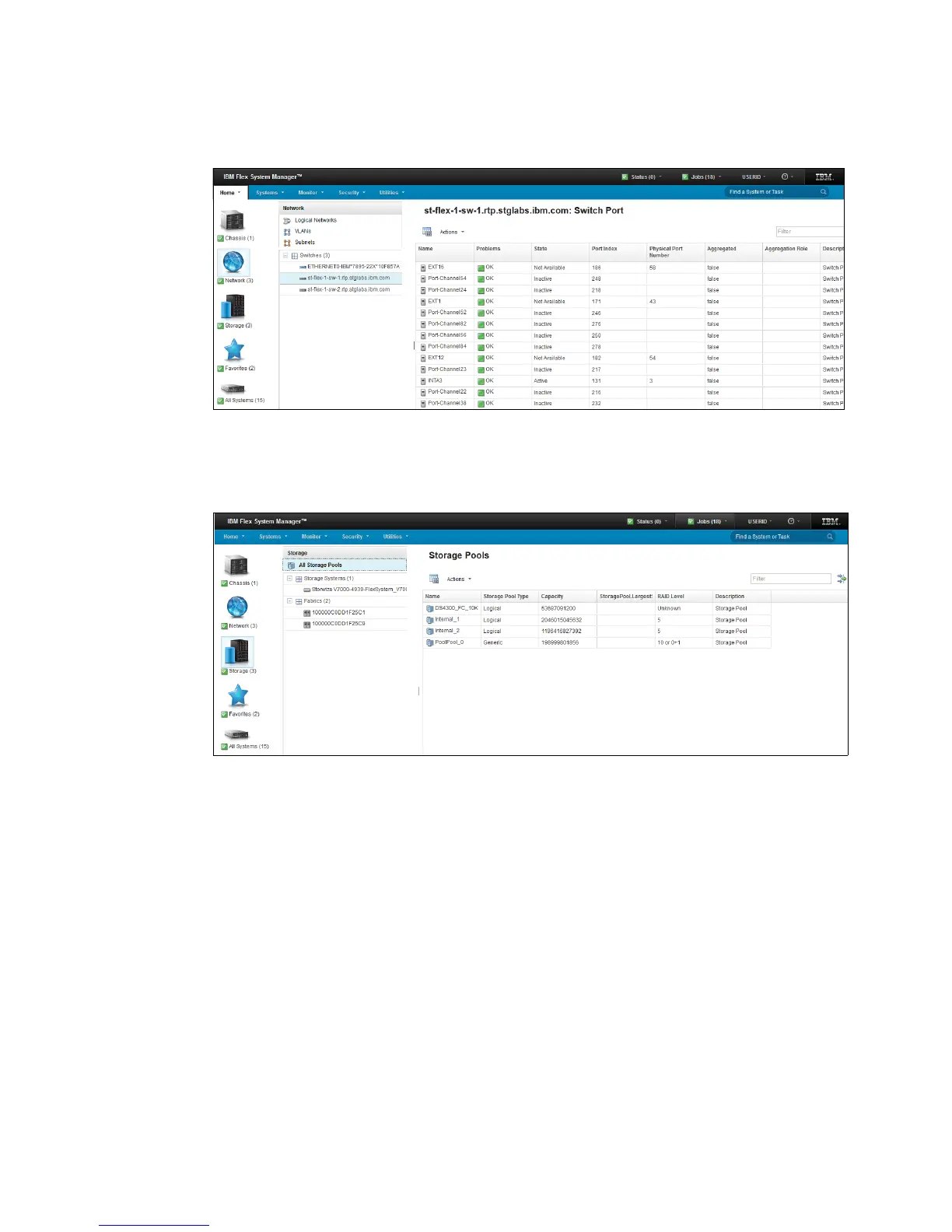

The Network page gives you an overview of VLANs, Subnets, and network switches, as
shown in Figure 3-62.
Figure 3-62 IBM FSM Explorer - Network page
The Storage page gives you an overview of all storage systems, Fabrics, and Storage pools,
as shown in Figure 3-63.
Figure 3-63 IBM FSM Explorer - Storage page
