88 IBM Midrange System Storage Hardware Guide
򐂰 If you attach a second expansion unit, connect it by using the second port on the controller
(controller A port 1 and controller B port 2), as shown in Figure 3-65.

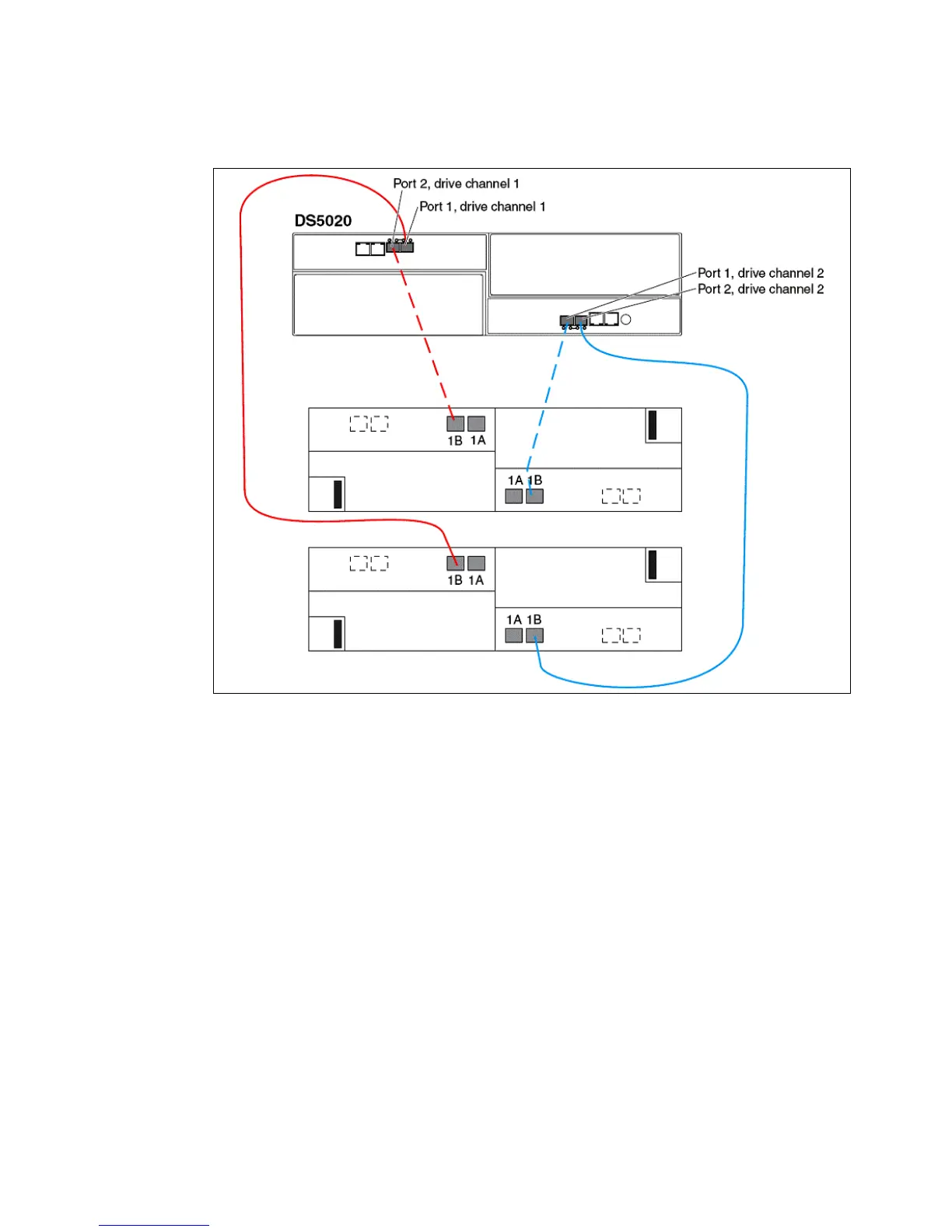

Figure 3-65 DS5020 drive cabling with two EXPs
EXP
EXP
