Chapter 5. Disk Security with Full Disk Encryption drives 281
When the correct key file is selected and the pass phrase is entered, all the drives will be
successfully unlocked, as shown in Figure 5-25.

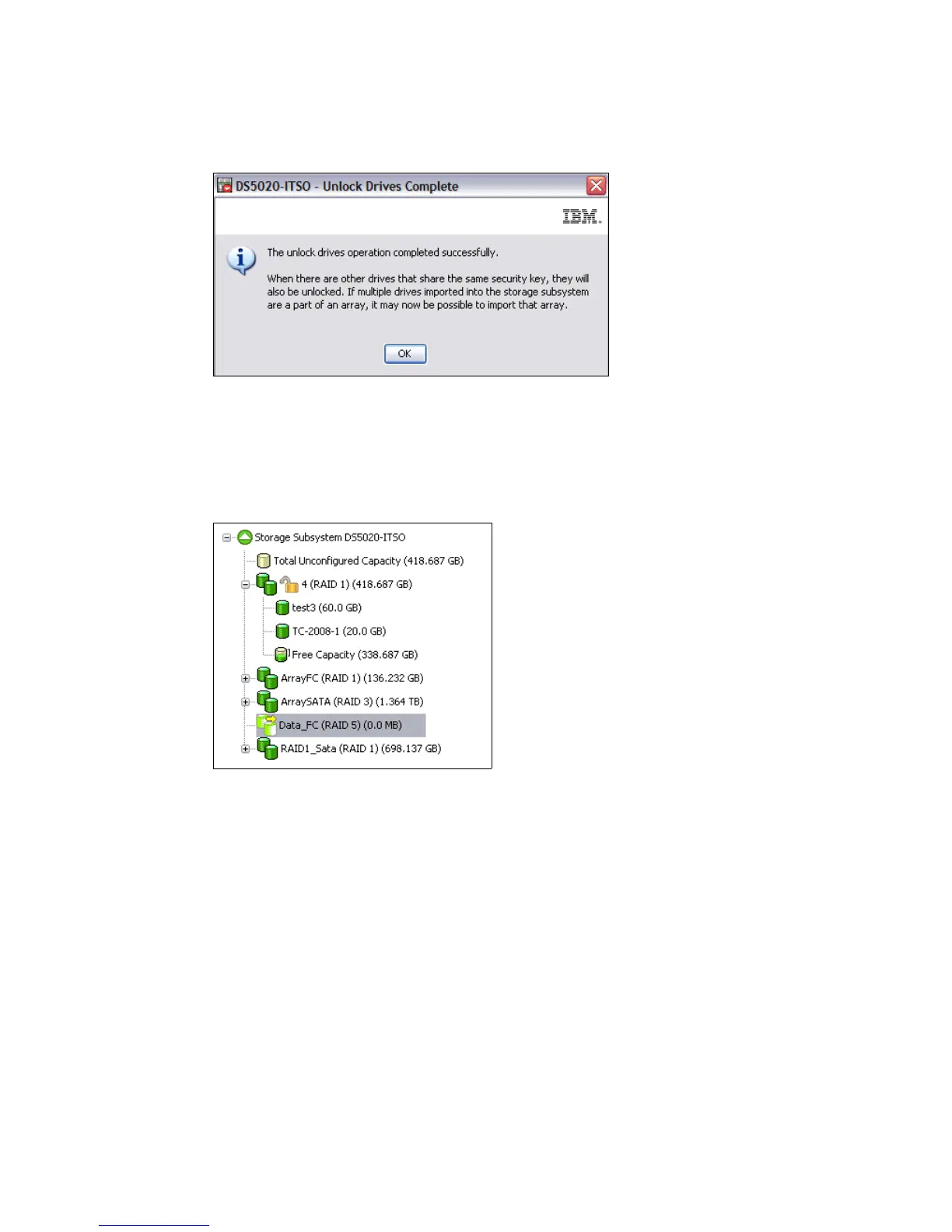

Figure 5-25 FDE drive unlock completed successfully
5.6.2 Import array
The array will be displayed in the Logical tab of the Storage Manager window, and is ready to
import, as shown in Figure 5-26.
Figure 5-26 Array ready to be imported
Use the Import Array option to import an array that you have previously exported. From the
Storage Manager window in the Logical view, select the array and then select Advanced 
Maintenance  Import Array.
