278 IBM Midrange System Storage Hardware Guide
The Storage Manager will now indicate that the array has been exported and the physical

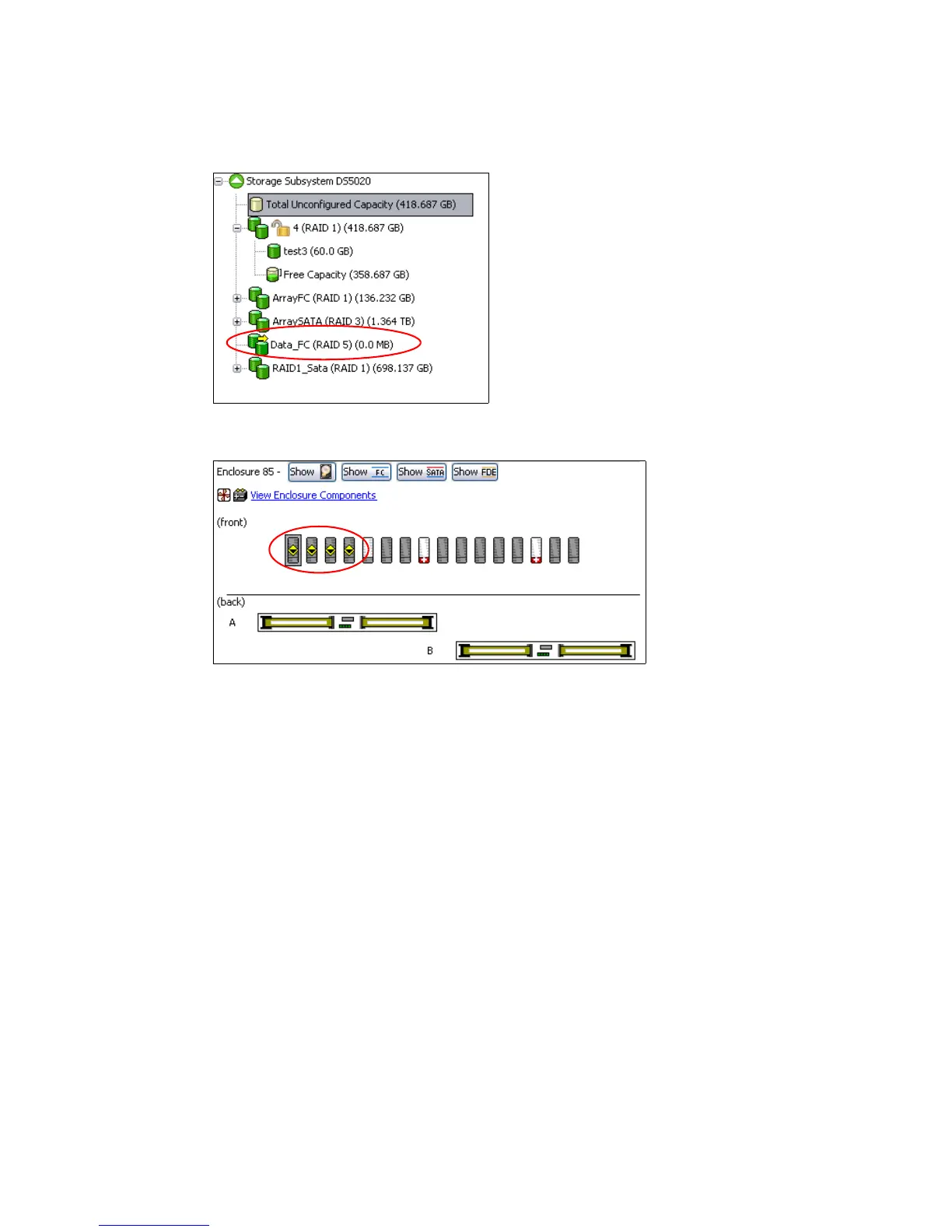

disks are offline. The windows shown in Figure 5-19 and Figure 5-20 confirm this information.
Figure 5-19 Array now exported
Figure 5-20 Array disks now offline
5.6 Import secure drive array
Once all the disks have been physically moved and are seated correctly in the target DS5000
enclosure, the drives can be unlocked and then the array can be imported. It is necessary to
ensure that all the drives are seen by the DS5000 and that there is not a problem with them,
as any problems will affect the array after it has been imported.
All drives will be in a locked state, as shown by the event viewer and the individual drive
properties, as shown in Figure 5-21 on page 279. Access is not allowed due to invalid key
details.
