RAID 6: High availability with additional fault tolerance
RAID 6 (see Figure A-4) is a RAID level employing n+2 drives, which can survive the
simultaneous failure of any two drives. RAID 6 stripes blocks of data and parity across an
array of drives and it calculates two sets of information for each block of data (p+q). For the
purposes of RAID 6 p+q, they can be used to generate up to two missing values from a set of
data.The key to this method is the q, which is a codeword based upon Reed-Solomon error
correction. As such, q is more like a CRC than parity. Based upon principles of set theory and
linear algebra, Reed-Solomon codes are well-known codes that are also maximum distance
separable (MDS).
The calculation of q is complex. In the case of the DS5000 storage subsystem, this
calculation is made by the hardware and thus there is more performance than the
software-based implementation found in other storage subsystems.
By storing two sets of distributed parities, RAID 6 is designed to tolerate two simultaneous
disk failures. This is a good implementation for environments using SATA disks.
Due to the added impact of more parity calculations, in terms of writing data, RAID 6 is slower
than RAID 5, but might be faster in random reads thanks to the spreading of data over one
more disks.

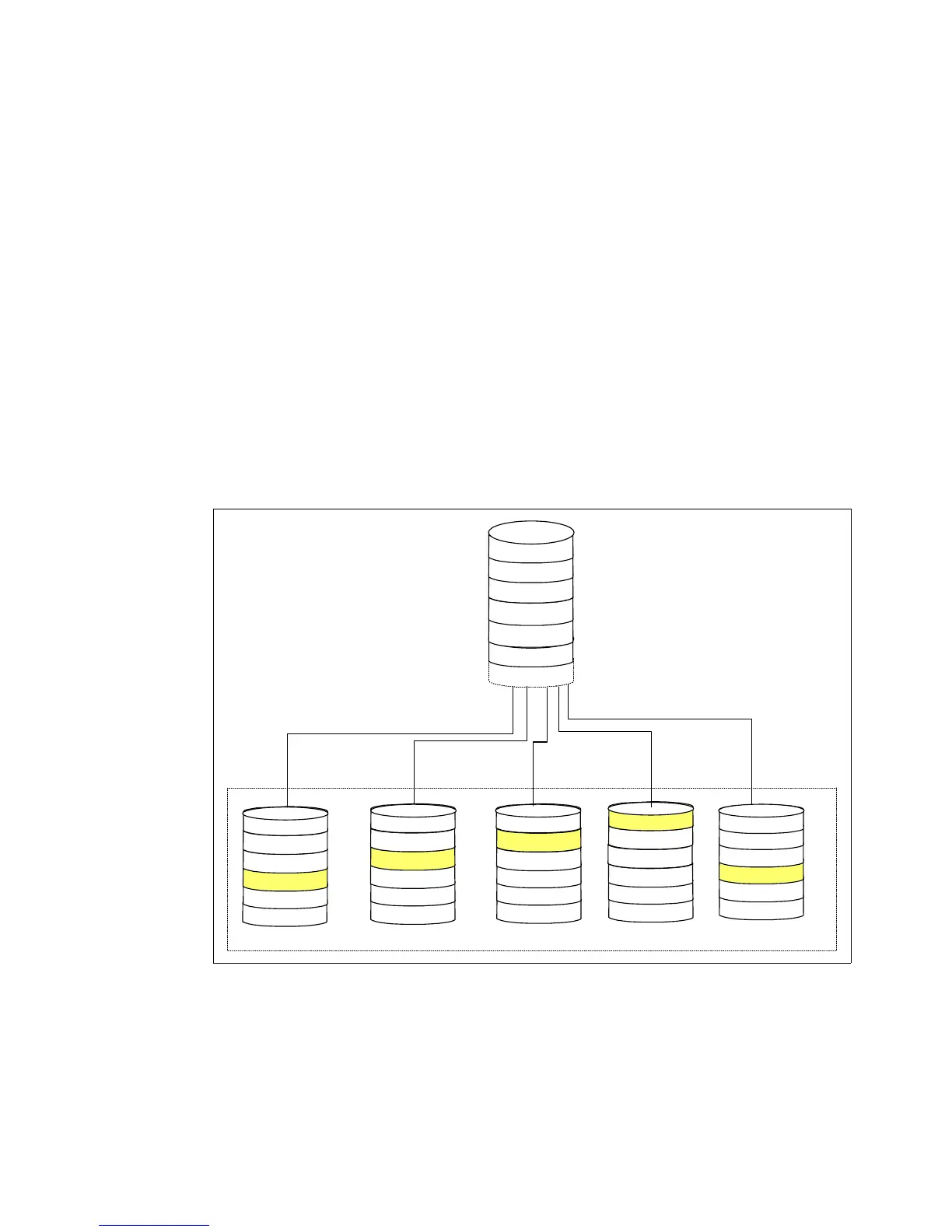

Figure A-4 RAID 6
RAID 6 is striping with Dual Rotational Parity but not “dual parity”.
...
