Chapter 4. IBM System Storage DS planning and configuration 163
Alternatively, you can add your storage manually from the Enterprise Management
selecting the Setup tab, selecting Add Storage Subsystem, and then completing the
fields with the default IP addresses, as shown in Figure 4-25.

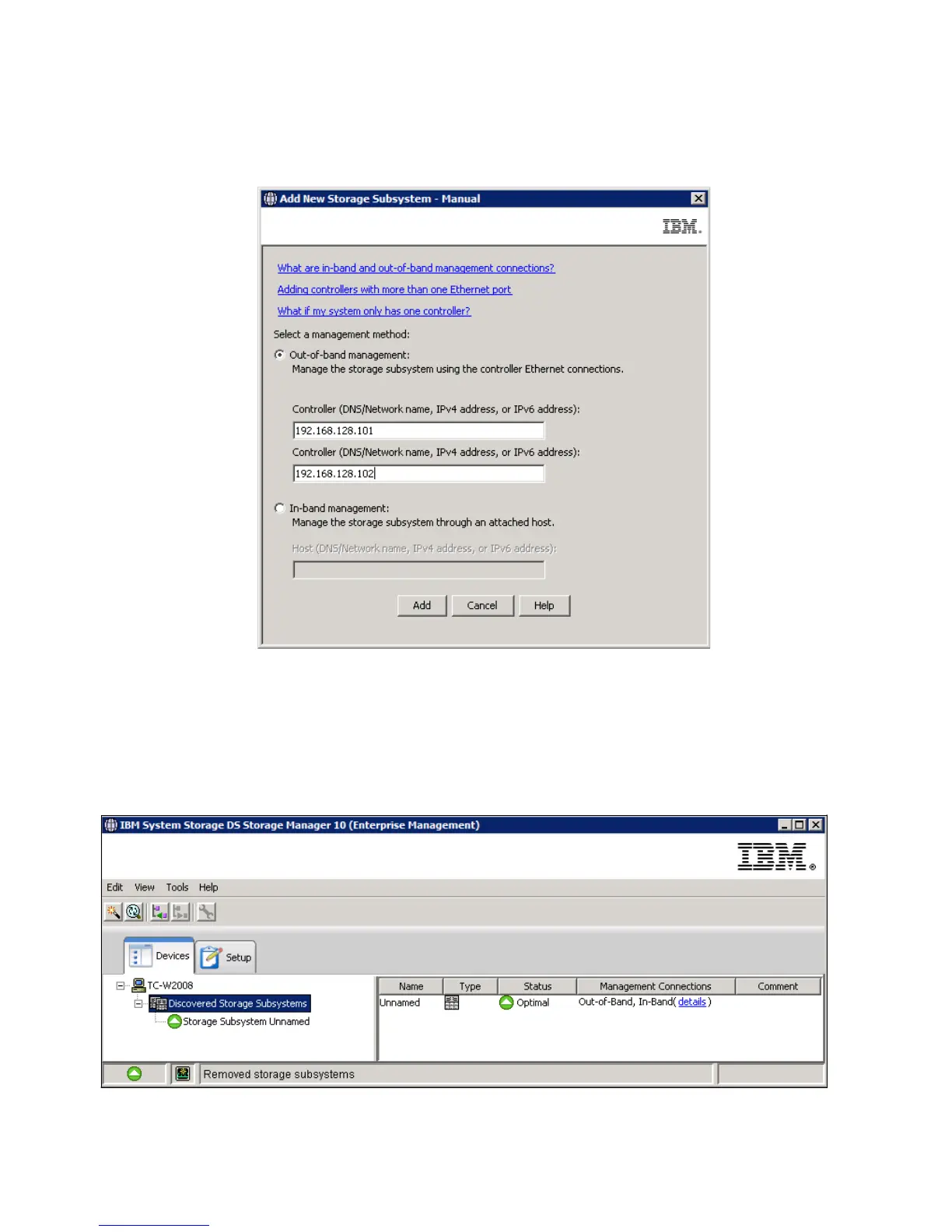

Figure 4-25 Manually adding a storage system
c. A confirmation message appears and prompts you for additional storage subsystems.
Click No to finish adding storage subsystems.
d. After successfully adding a storage subsystem, the Devices tab shows the new
system. Note than you can check the IP address of the managed system by selecting
Details under Management Connections.
Figure 4-26 Managing a storage system
