5. Reconnect all the SAS cables to the appropriate SAS ports on the expansion
canister, as described in “Removing and installing a SAS cable: 2145-92F” on
page 97.
6. Reconnect the elbow of the lower cable management arm to the inner member
of the slide rail.
Removing or moving the cable-management arm: 2145-92F
You might need to move the cable-management arm (CMA) aside to complete
service tasks. If needed, you can also remove the CMA from the 2145-92F
expansion enclosure.
About this task
The cable management arm (CMA) consists of an upper and lower arm assembly,
as Figure 61 on page 71 shows. The upper and lower are independent of each
other. They can be installed, moved, or removed from the enclosure individually.

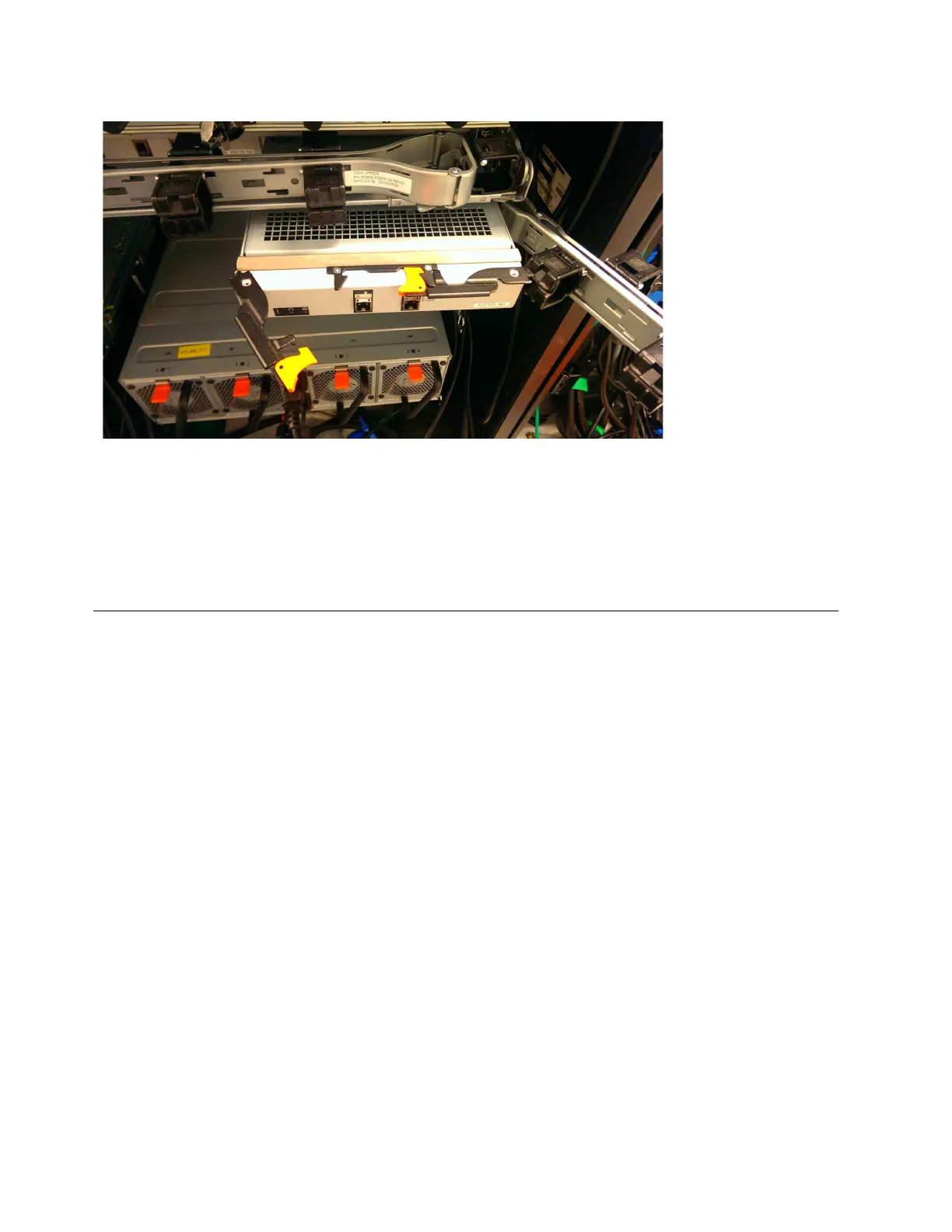

Figure 60. Install the expansion canister
70 SAN Volume Controller: Model 2145-SV1 Hardware Installation Guide
