For more information about the power supply indicators, see “SAN Volume
Controller 2145-92F expansion enclosure LEDs and indicators” on page 144.
Removing the fascia: 2145-92F
To perform service tasks, you can remove each component of the fascia from the
front of a 2145-92F expansion enclosure.
About this task
The expansion enclosure has a 4U front fascia that covers the display panel and a
1U fascia that covers the power supply units (PSUs). As Figure 92 on page 95
shows, the fascias are independent; you can remove or replace one without having
to remove or replace the other.

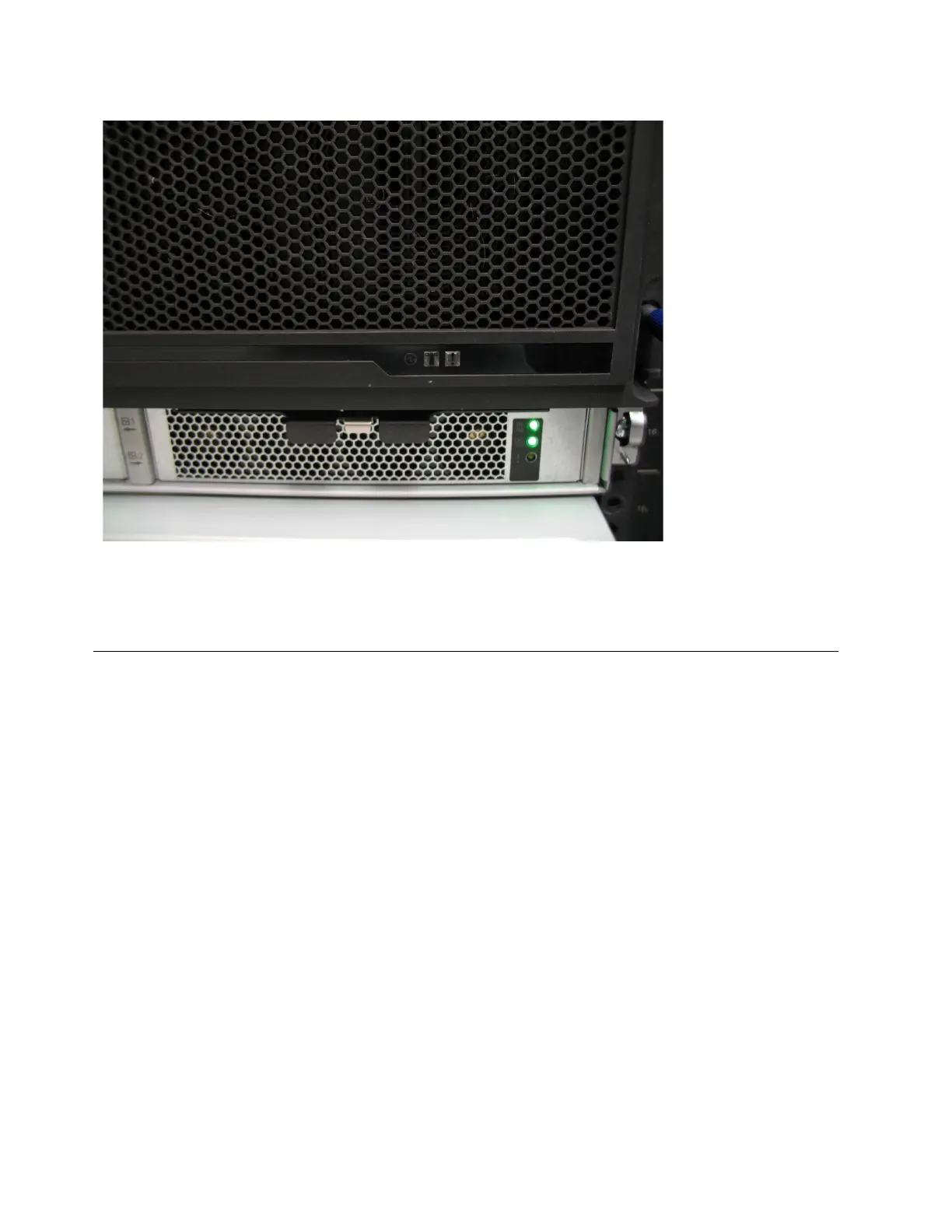

Figure 91. Power supply indicators
