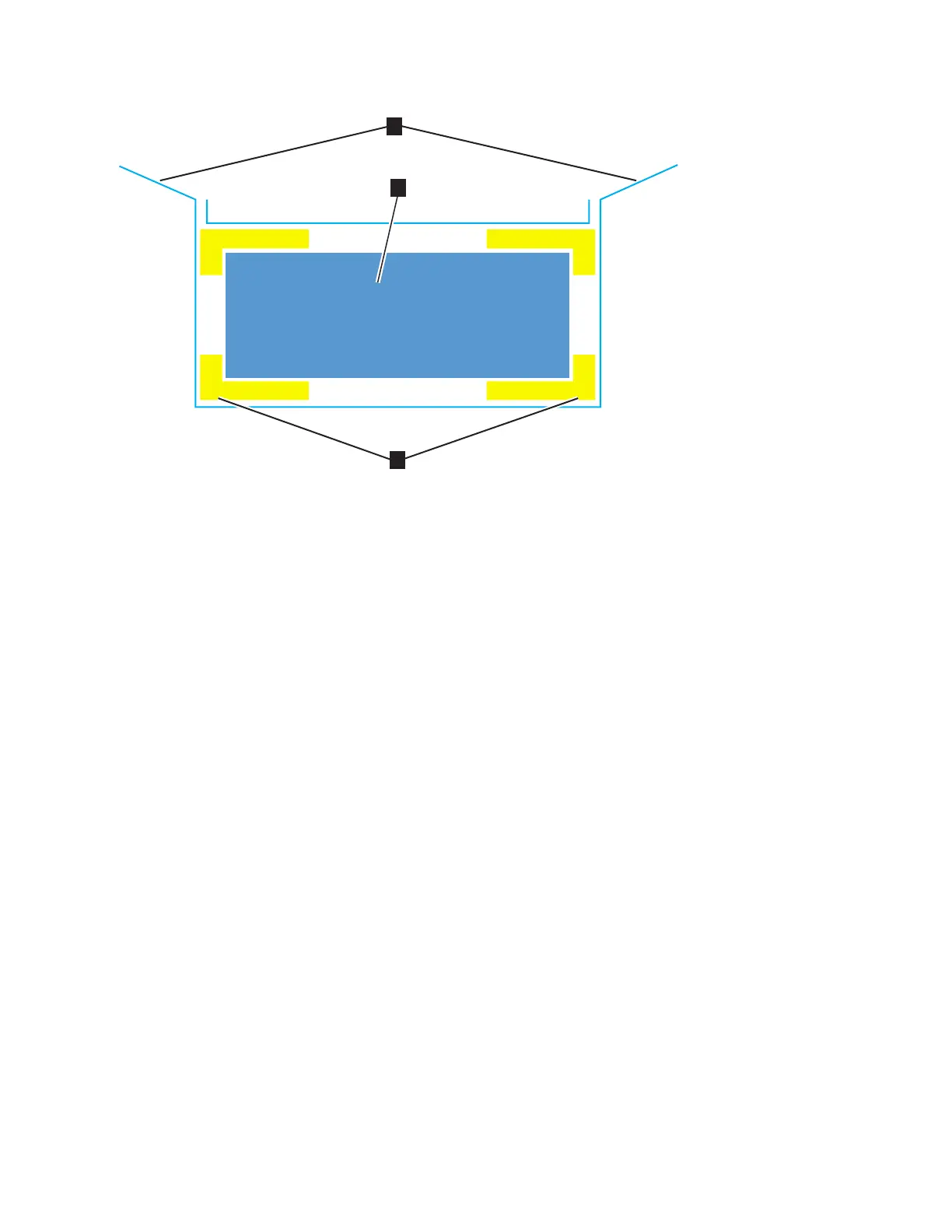

▌1▐ Enclosure
▌2▐ Top of shipping box, folded back
▌3▐ Foam protectors
4. Remove the top cover, as described in “Removing the top cover: 2145-92F” on
page 56.
5. With two or more persons, push the expansion enclosure sideways onto an
adjacent flat bed lift. Keep the remaining foam block protectors attached to the
enclosure.
6. Remove the support rail kit from the box in which it was shipped (▌1▐, as
shown in Figure 46 on page 54).
7. Separate the inner section of the support rails and attach them to each side of
the expansion enclosure, as described in steps 3 on page 58 through 5 on page
59 in “Installing or replacing the support rails: 2145-92F” on page 58.
8. Attach the remaining sections of the support rails to the rack, as described in
step 6 on page 60 in “Installing or replacing the support rails: 2145-92F” on
page 58.
9. Move the mechanical lift to the front of the rack. Align the inner section of the
rails with the mid section of the rails that are extending from the rack.
10. On each side, push the inner section and middle section of the rails together
until they click and will no longer separate, as described in step 1 on page 67
in “Installing or replacing an expansion enclosure in a rack: 2145-92F” on page
61.
11. Remove the 4U and 1U fascia from the boxes in which they were shipped, as
shown in Figure 48 on page 56.
Figure 47. Packaging materials
Chapter 4. Installing an optional 5U SAS expansion enclosure 55
