SAN Volume Controller 2145-SV1 front panel controls and indicators
The controls and indicators on the front panel are used for power and to indicate
information such as system activity, node failures, and node identification.

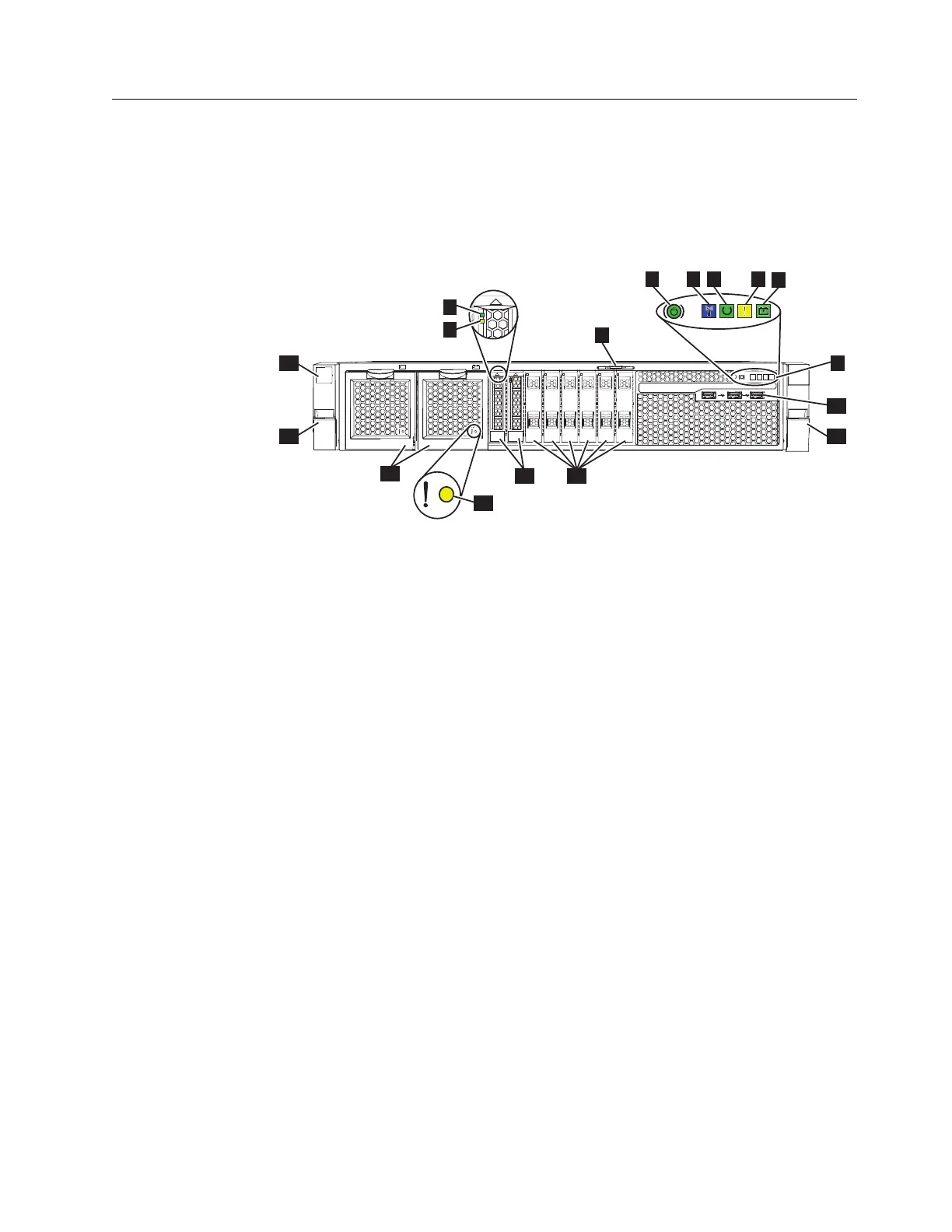

Figure 1 shows the controls and indicators on the front panel of the SAN Volume
Controller 2145-SV1.
▌1▐ Boot drive activity LED
▌2▐ Boot drive status LED
▌3▐ Pullout tab showing 11S serial number
▌4▐ Power-control button and power-on LED
▌5▐ Identify LED
▌6▐ Node status LED
▌7▐ Node fault LED
▌8▐ Battery status LED
▌9▐ Operator-information panel
▌10▐ Front USB ports 1-3
▌11▐ Right side latch (releases chassis to slide out on rails)
▌12▐ Drive slot fillers (no empty slots permitted)
▌13▐ Boot drives
▌14▐ Battery fault LED
▌15▐ Batteries
▌16▐ Left side latch (releases chassis to slide out on rails)
▌17▐ Machine type and model (MTM) and serial number
Boot drive activity LED
The green drive activity LED indicates one of the following conditions.
Off The drive is not ready for use.
Flashing
The drive is in use.
On The drive is ready for use, but is not in use.
sv100001
2
3
4
5
6
7
8
1
2
1
3
17
16
9
11
10
12
13
14
15
1
2
4
8
5 6 7
Figure 1. SAN Volume Controller 2145-SV1 front panel
Chapter 1. Preparing to install the SAN Volume Controller 3
