5. Touch the static-protective package that contains the drive to any unpainted
metal surface on the enclosure. Wear an anti-static wrist strap to remove the
drive from the package.
6. Ensure that the drive handle (▌1▐ in Figure 82 on page 85) of the drive
assembly is in the open (unlocked) position.
7. Align the drive carrier into the appropriate drive slot.
8. Gently push the drive down until it stops and the bottom of the latch is
aligned with the top of the partition. Ensure that the handle is not open more
than 45 degrees from the drive carrier. (▌2▐ in Figure 82 on page 85).

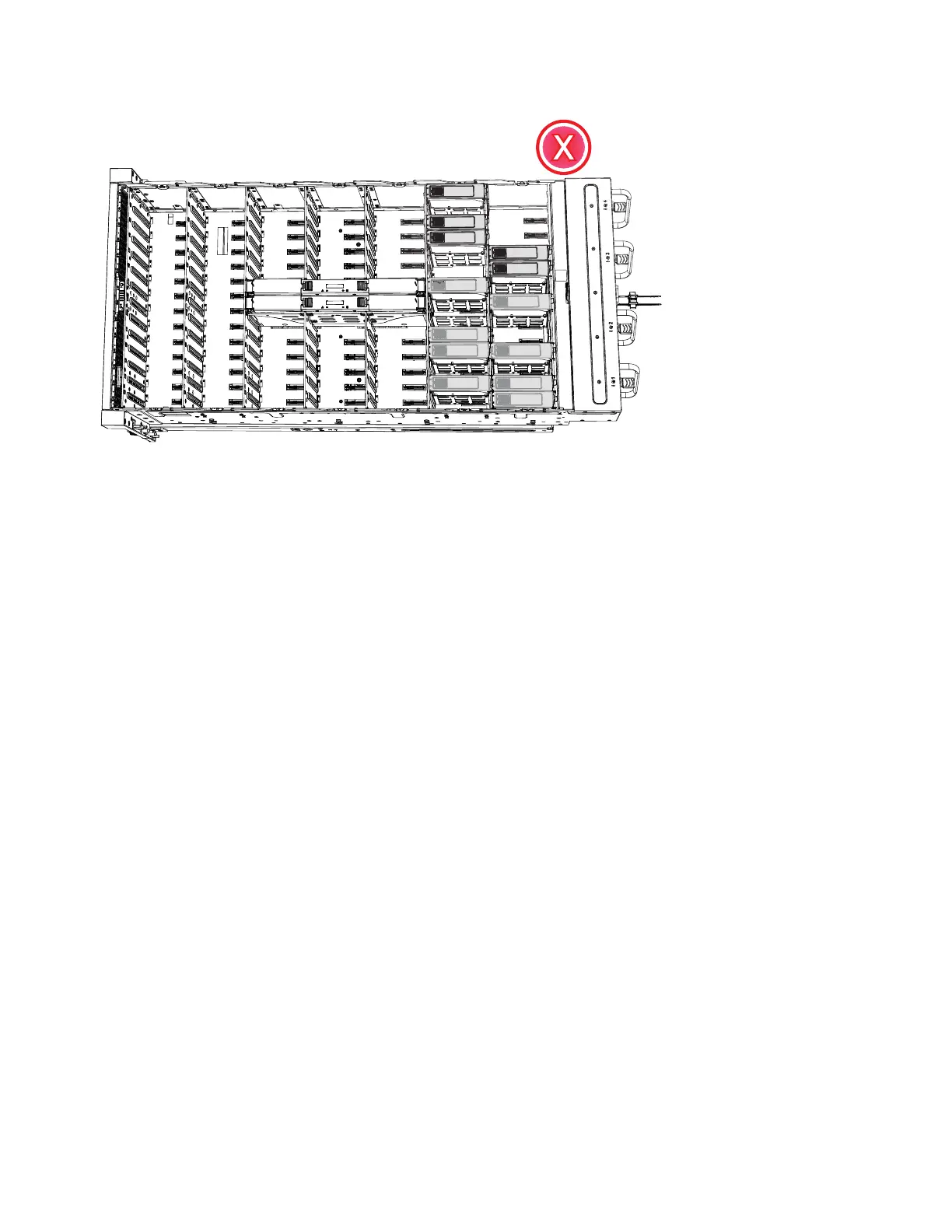

Figure 81. Incorrect drive installation
84 SAN Volume Controller: Model 2145-SV1 Hardware Installation Guide
