▌1▐ - ▌16▐ Fibre Channel ports 1-16
Figure 16 shows the Ethernet port numbers for the SAN Volume Controller
2145-SV1 when the 10 Gbps Optical Ethernet adapter is configured for iSCSI
communications.
▌1▐ - ▌3▐ 10 Gbps Ethernet ports 1-3
▌4▐ - ▌7▐ 10 Gbps optical Ethernet ports 4-7
sv100014
1
2
4
5
3
7
8
6
12
1 2 3 4
5
6 7 8
109 11 12
14
13
15 16

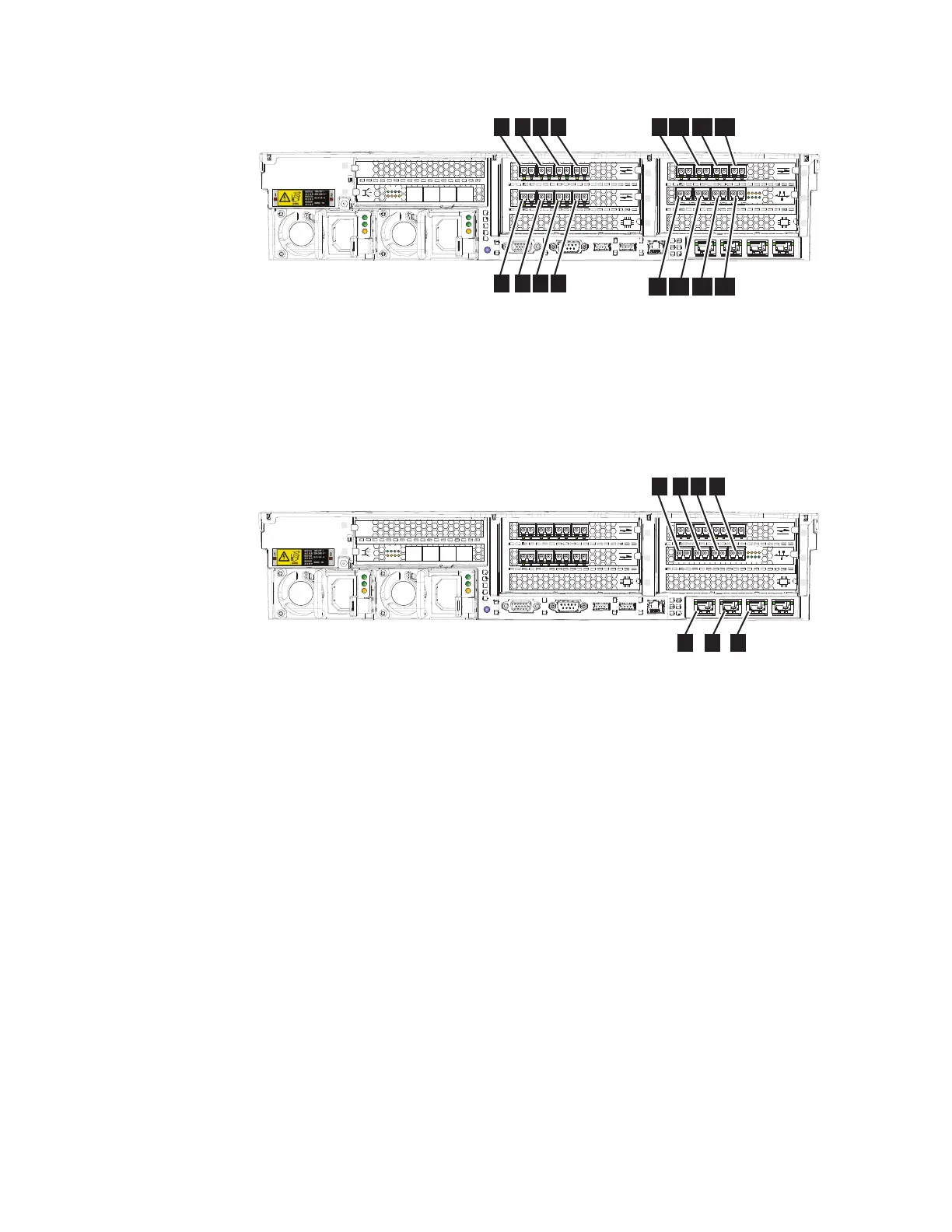

Figure 15. Fibre Channel port numbers in a typical configuration
sv100014a
1
2
4
5
3
7
8
6
12
4 5 6 7
1
2 3
Figure 16. Ethernet port numbers for iSCSI communication
14 SAN Volume Controller: Model 2145-SV1 Hardware Installation Guide
