6. Lift the handle (▌2▐) to unlock the drive carrier from the partition, as shown in
Figure 109. Ensure the toe on the bottom of the latch is fully disengaged.
7. Carefully lift the drive carrier up to remove it from the expansion enclosure.
8. Repeat step 4 on page 115 through step 7 for each drive you need to remove.
Replace the drive
9. To reinstall a drive, or replace it with one from FRU stock, follow the procedure
in “Installing or replacing a drive: 2145-92F” on page 81.
Removing a secondary expander module: 2145-92F
You can remove a secondary expander module from a 2145-92F expansion
enclosure if it is faulty or to perform other service tasks.

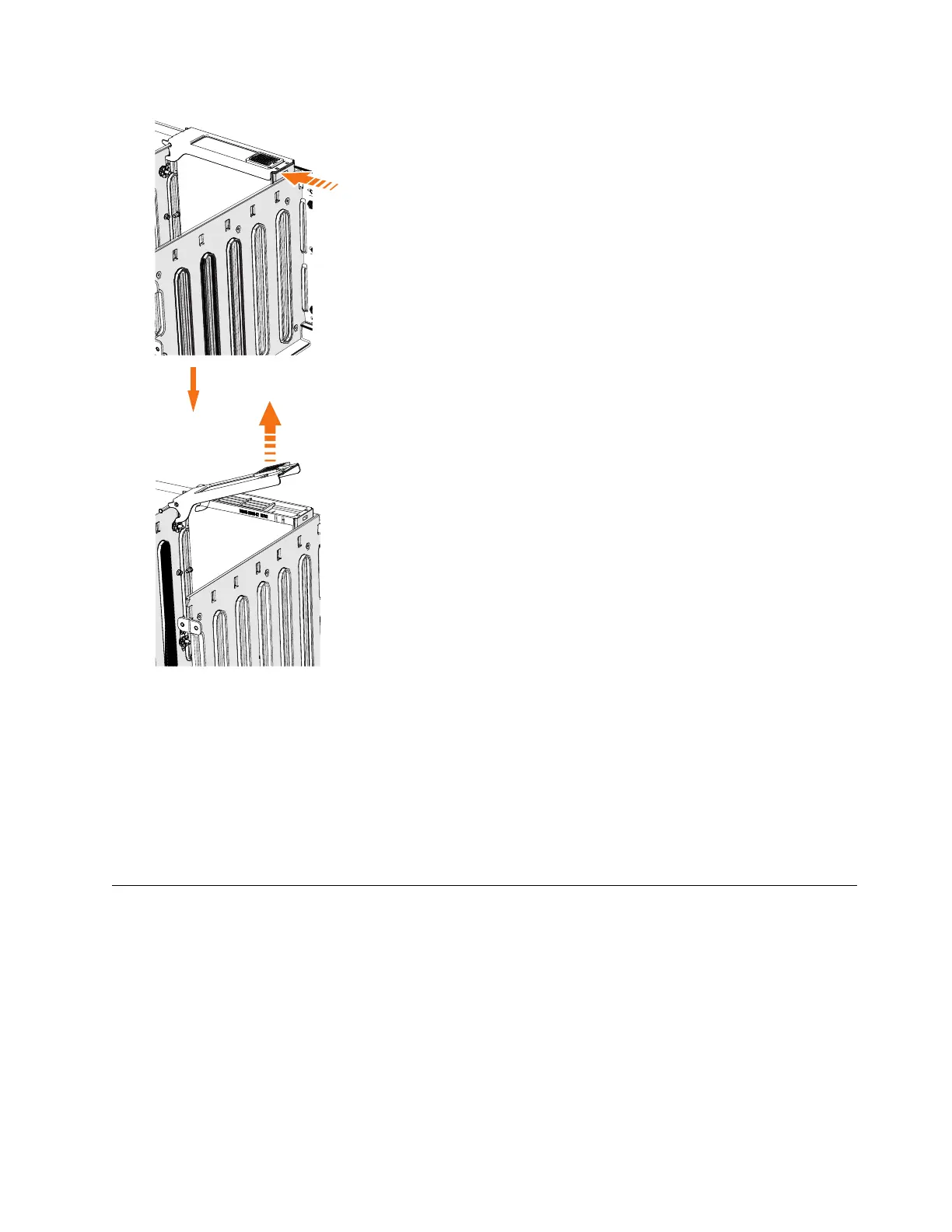

Figure 109. Remove the drive assembly
Chapter 4. Installing an optional 5U SAS expansion enclosure 117
