The SATA cable is a combination power and signal cable with a shared connector

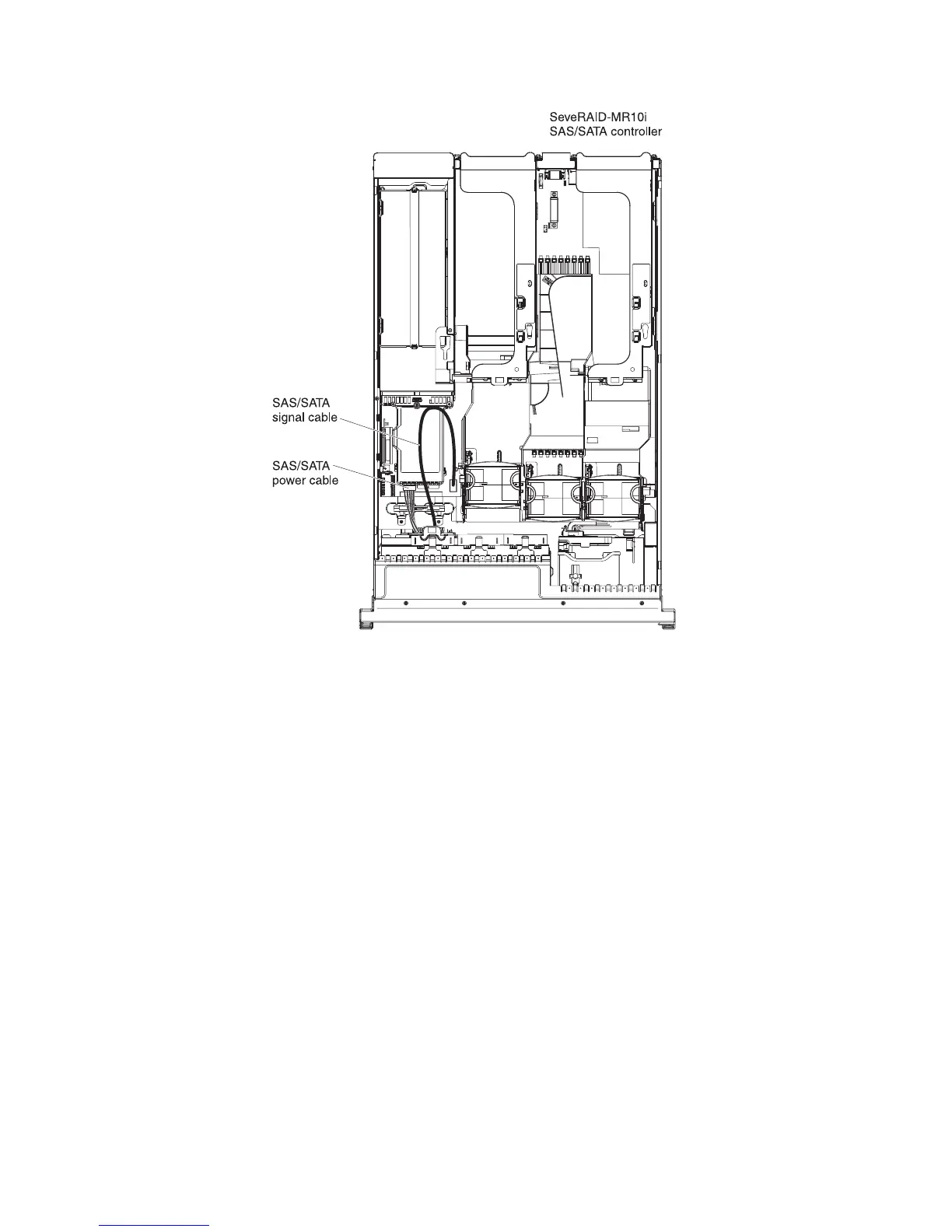

on both ends. The following illustration shows the internal routing and connector for
the SATA cable.
Attention: To disconnect the optional optical drive cable, you must first press the
connector release tab, and then disconnect the cable from the connector on the
system board. Do not disconnect the cable by using excessive force. Failing to
disconnect the cable properly may damage the connector on the system board. Any
damage to the connector may require replacing the system board.
Chapter 5. Removing and replacing server components 173
