6. Remove the screw from the safety cover.
7. Disconnect the hard disk drive backplane power cables from the connector in
front of the safety cover.
8. Slide the cover forward to disengage it from the system board, and then lift it
out of the server.
9. If you are instructed to return the 240 VA safety cover, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to

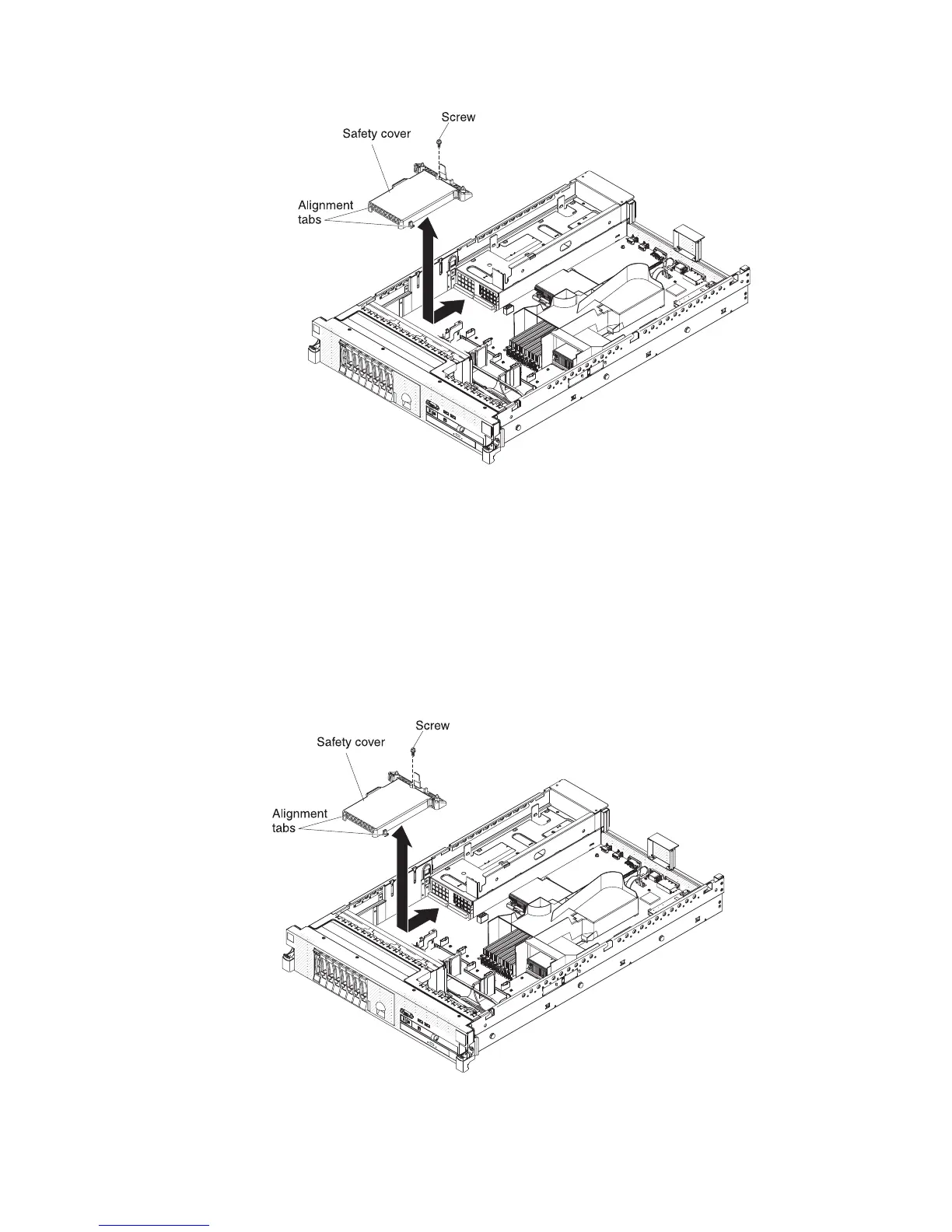

you.
Installing the 240 VA safety cover
To install the 240 VA safety cover, complete the following steps.
1. Line up and insert the tabs on the bottom of the safety cover into the slots on
the system board.
2. Slide the safety cover toward the back of the server until it is secure.
Chapter 5. Removing and replacing server components 251
