Internal connectors, LEDs, and jumpers
The illustrations in this section show the LEDs, connectors, and jumpers on the
internal boards. The illustrations might differ slightly from your hardware.
System-board internal connectors

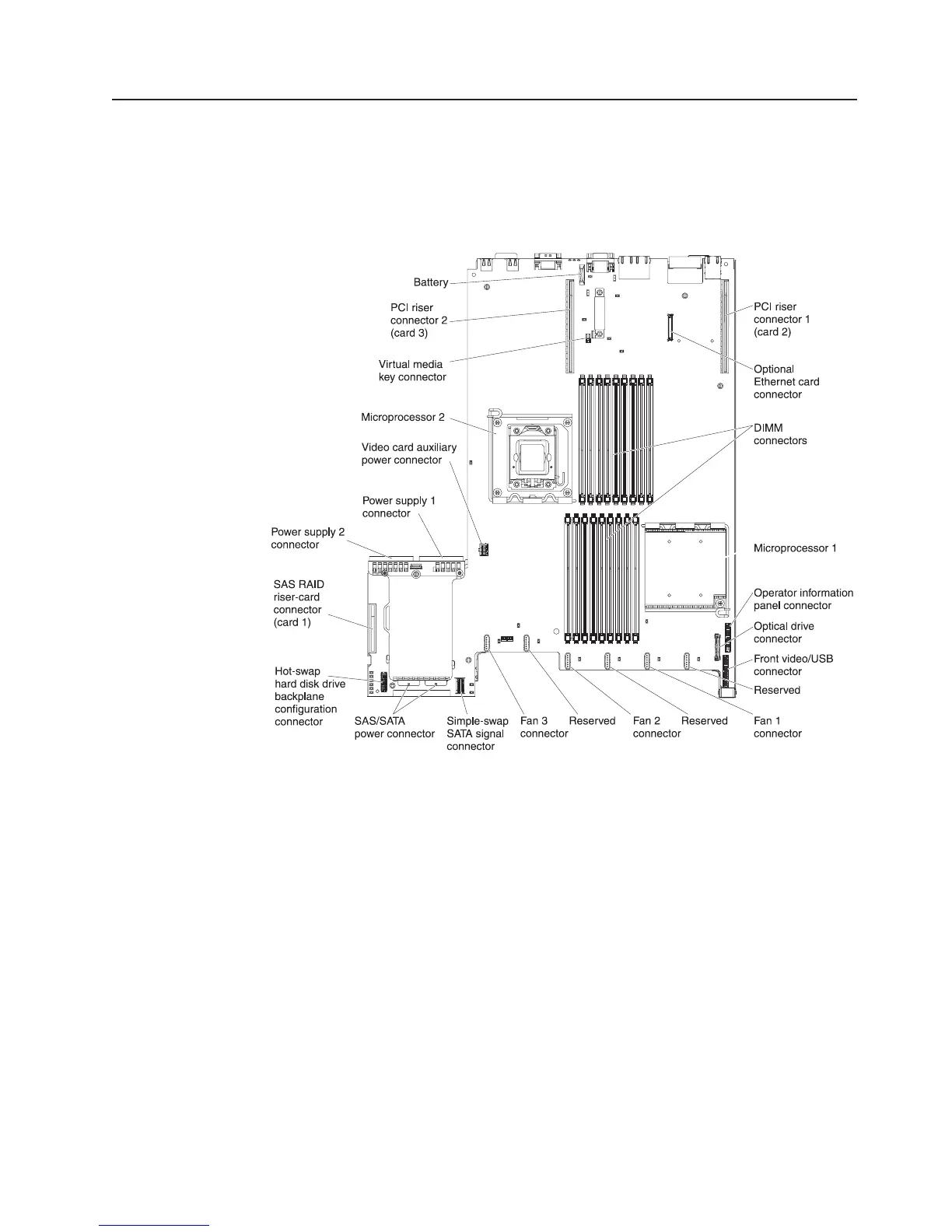

The following illustration shows the internal connectors on the system board.
