Attention:
v When you route cables, do not block any connectors or the ventilated space
around any of the fans.
v Make sure that cables are not routed on top of components under the PCI
riser-card assembly.
v Make sure that cables are not pinched by the server components.
3. Align the PCI riser-card assembly with the selected PCI connector on the
system board:
v PCI-riser connector 1: Carefully fit the two alignment slots on the side of the
assembly onto the two alignment brackets on the side of the chassis; align
the rear of the assembly with the guides on the rear of the server.
v PCI-riser connector 2: Carefully align the bottom edge (the contact edge) of
the riser-card assembly with the riser-card connector on the system board;
align the rear of the assembly with the guides on the rear of the server.
4. Press down on the assembly. Make sure that the riser-card assembly is fully
seated in the riser-card connector on the system board.
5. Perform any configuration tasks that are required for the adapter.
6. Install the server cover (see “Installing the cover” on page 178).
7. Slide the server into the rack.
8. Reconnect the external cables; then, reconnect the power cords and turn on the
peripheral devices and the server.

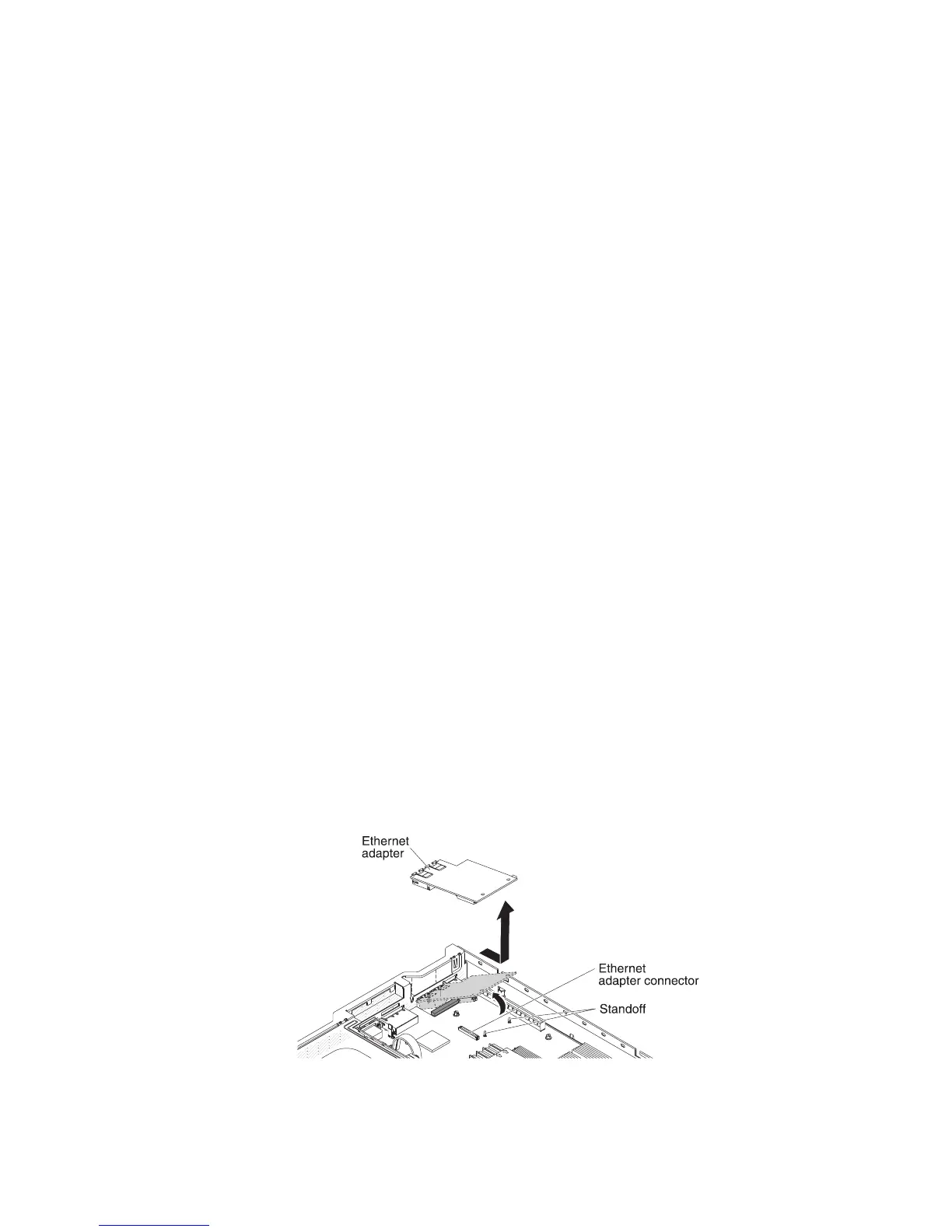

Removing the optional two-port Ethernet adapter
To remove an Ethernet adapter, complete the following steps:
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 169.
2. Turn off the server and peripheral devices and disconnect all power cords and
external cables.
3. Remove the cover (see “Removing the cover” on page 177).
4. Remove the PCI riser-card assembly 1 (see “Removing a PCI riser-card
assembly” on page 188).
5. Grasp the Ethernet adapter and disengage it from the standoffs and the
connector on the system board; then, slide the Ethernet adapter out of the port
openings on the rear of the chassis and remove it from the server.
6. If you are instructed to return the Ethernet adapter, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.
Chapter 5. Removing and replacing server components 193
