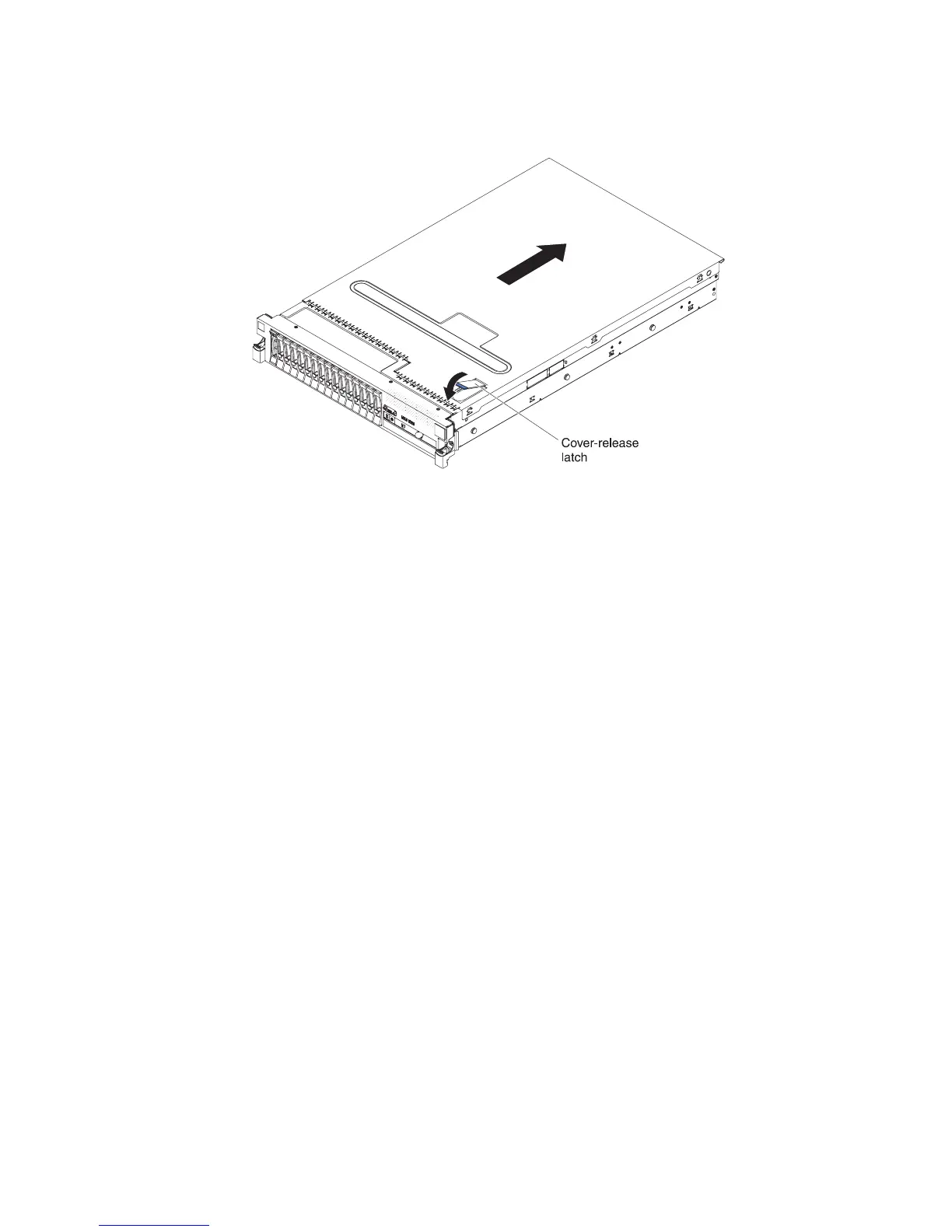

Installing the cover
To install the cover, complete the following steps.
1. Make sure that all internal cables are correctly routed (see “Internal cable
routing and connectors” on page 172.)
2. Place the cover-release latch in the open (up) position.
3. Insert the bottom tabs of the top cover into the matching slots in the server
chassis.
4. Press down on the cover-release latch to lock the cover in place.
5. Slide the server into the rack.
Removing the microprocessor 2 air baffle
When you work with some optional devices, you must first remove the
microprocessor 2 air baffle to access certain components on the system board.
To remove the microprocessor 2 air baffle, complete the following steps.
178 IBM System x3650 M3 Types 4255, 7945, and 7949: Problem Determination and Service Guide
