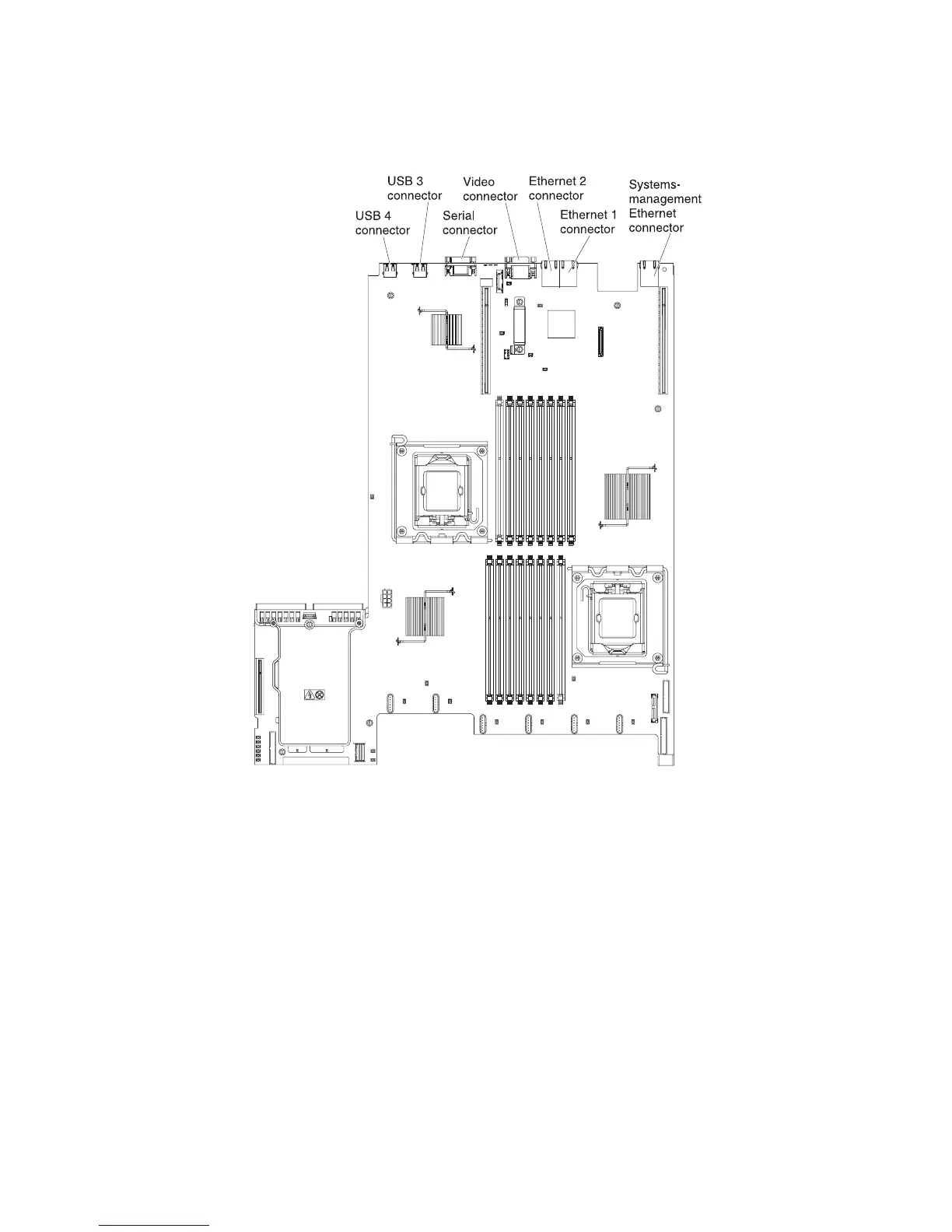

System-board external connectors
The following illustration shows the external input/output connectors on the system
board.
16 IBM System x3650 M3 Types 4255, 7945, and 7949: Problem Determination and Service Guide
