IBM System x3650 M3 4255 - Page 217

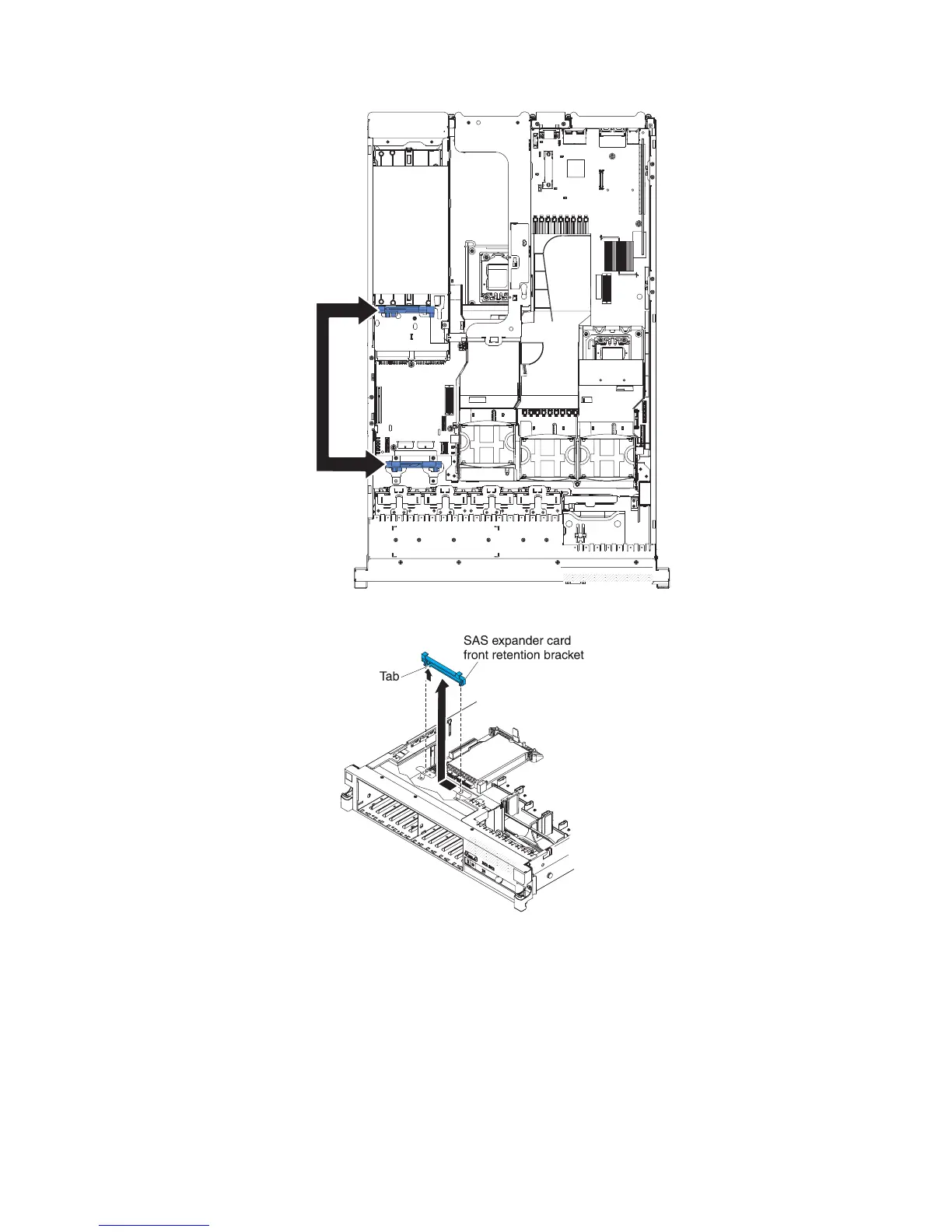

a. Remove the SAS controller front retention bracket from the server.
b. Remove the rear controller retention bracket located in the battery bay
above the power supplies by pulling up the release tab 1 and sliding
the bracket outward 2.
Chapter 5. Removing and replacing server components 199
